L-COM LCCA30192FT6 RF Cable Assembly

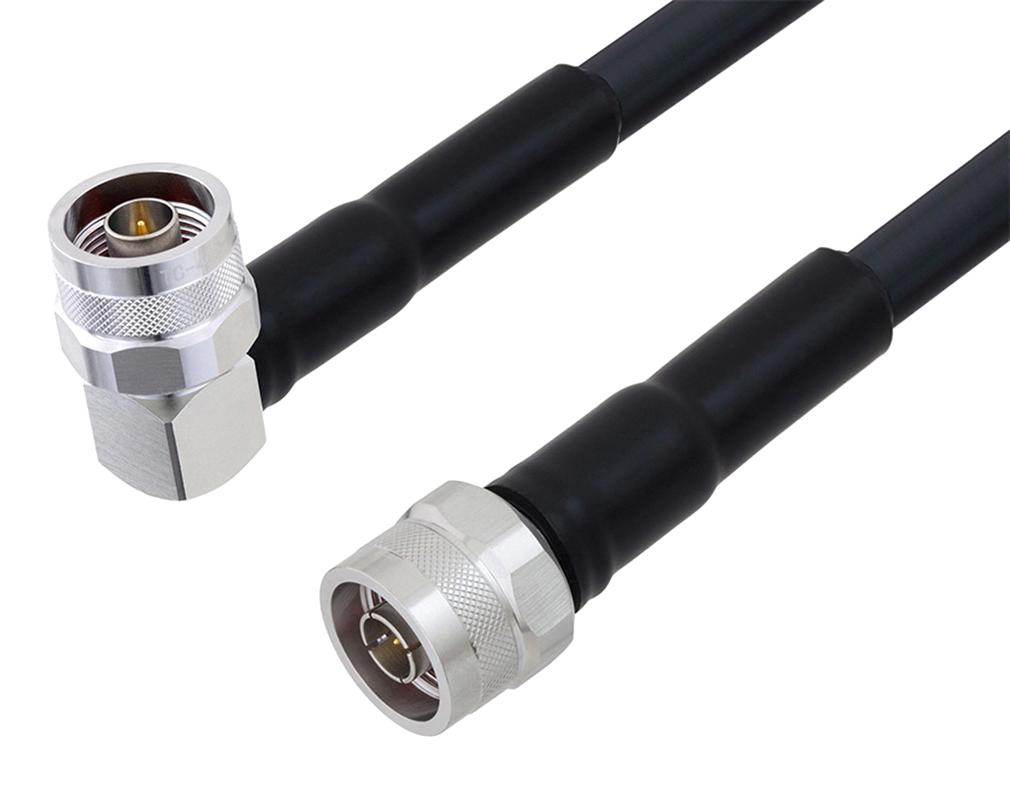

L-com’s LCCA30192-FT6 is a flexible, low-loss RF cable assembly featuring LMR-400 coax with Times Microwave Components, designed for reliable connectivity up to 6 GHz. The assembly includes a male N connector at a right angle and a male N connector on the other end, both with gold-plated brass bodies for durability. Its PE (F) dielectric ensures minimal insertion loss and excellent shielding effectiveness over 90 dB, making it ideal for various applications such as land mobile radio, cellular, Wi-Fi, and antenna installations. The 6-foot length, rugged jacket, and tight bend radius of 4 inches facilitate easy installation in tight spaces, ensuring consistent performance and durability in demanding environments.
L-COM LCCA30192FT6 RF Cable Assembly Specifications:
- Frequency Range: DC to 6 GHz
- Impedance: 50 Ohms
- Cable Type: LMR-400
- Length: 6 feet (approx. 182.88 cm)
- Connector 1: N Male Right Angle
- Connector 2: N Male
- Shielding Effectiveness: > 90 dB
- Velocity of Propagation: 85%
- Insertion Loss (typical): 0.42 dB at 0.25 GHz, 0.96 dB at 6 GHz
- Capacitance: 23.9 pF/ft
- Inductance: 0.06 μH/ft
- DC Resistance (Inner Conductor): 1.39 Ohms/1000 ft
- Outer Conductor Resistance: 1.65 Ohms/1000 ft
- Jacket Material: PE, Black
- Maximum Bend Radius: 4 inches
- Temperature Range: -40°C to +85°C
- Connector Material: Brass, Gold-plated
- Dielectric Type: PE (F)
- Shield Layers: Aluminum Tape and Tinned Copper Braid
Buy the Buy INFINIT@ Low Loss N Male Right Angle to N Male Part Number LCCA30192FT6 Online
Purchase the INFINIT@ LCCA30192-FT6 RF cable assembly online today to benefit from same-day shipping and high-performance connectivity. This 6-foot flexible, low-loss N male right angle to N male coaxial cable is ideal for cellular, Wi-Fi, land mobile radio, and antenna applications. Its robust design features shielding over 90 dB and a rugged PE jacket, ensuring durability in demanding environments. Perfect for tight spaces and requiring minimal signal loss, this assembly guarantees reliable performance—order now for quick delivery and professional-grade connectivity solutions.
Order your INFINIT@ LCCA30192-FT6 low loss RF cable assembly today and ensure reliable, high-quality connections for your cellular, Wi-Fi, or antenna systems.
