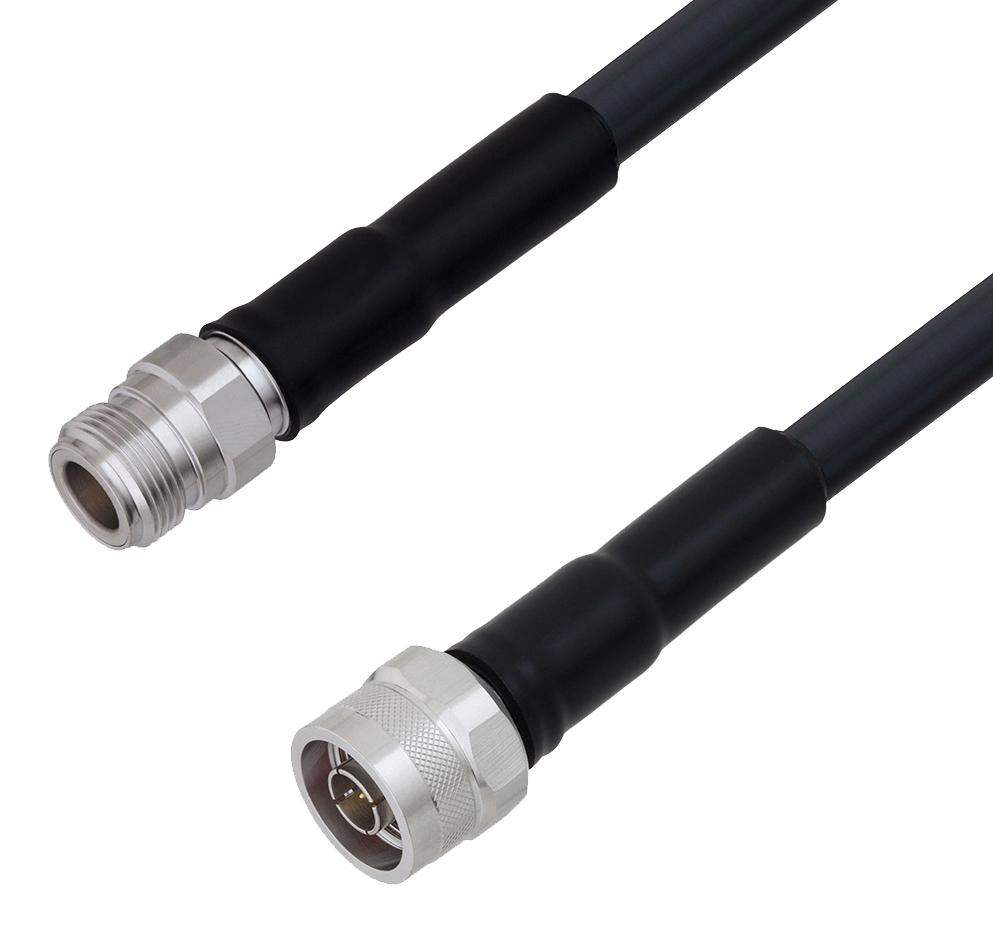

L-COM LCCA30193FT6 RF Cable Assembly
L-com’s LCCA30193-FT6 is a flexible, low loss N female to N male cable assembly using 6 feet of LMR-400 coaxial cable with Times Microwave components. Operating up to 6 GHz, it features a PE jacket, double shielding with aluminum tape and tinned copper braid, and a 85% phase velocity for efficient signal transmission. It is ideal for radio, Wi-Fi, cellular systems, antenna setups, and laboratory applications. The assembly offers excellent shielding effectivity (> 90 dB) and is designed for robust, high-frequency communication connections with low insertion loss and durable construction.
L-COM LCCA30193FT6 RF Cable Assembly Specifications:
- Frequency Range: DC to 6 GHz
- Impedance: 50 Ohms
- Cable Type: LMR-400
- Cable Length: 6 FT (182.88 cm)
- Diameter: 0.405 in [10.29 mm]
- Inner Conductor: Solid Copper, Gold Plated
- Dielectric: PE (F), 85% phase velocity
- Shielding: Aluminum Tape, Tinned Copper Braid (> 90 dB)
- Maximum Bend Radius: 4 inches (101.6 mm)
- Connector 1: N Female, MIL-STD-348, Gold Plated
- Connector 2: N Male, MIL-STD-348, Gold Plated
- Operating Temperature: -40°C to +85°C
- Mechanical Resistance: Tensile strength 160 lbs
- Voltage Rating: 8,000 Vrms
- Minimum Bend Radius: 1 inch (25.4 mm)
- Jacket Material: PE, Black
- Bending Moment: 0.5 Ibs-ft (0.68 N-m)
- Certifications: RoHS Compliant
Buy the InfinetG LCCA30193-FT6 – Reliable RF Cable for Industrial Applications
Order the InfinetG low loss RF cable assembly with 6 feet of LMR-400 coax now. Designed for high-frequency applications like land mobile radio, Wi-Fi, cellular systems, and antenna installations. This durable, shielded N female to N male connector ensures minimal signal loss with a maximum frequency of 6 GHz. Features a PE jacket, excellent shielding above 90 dB, and a robust build for reliable, professional use in industrial, laboratory, and communication system setups. Same-day shipping available for immediate project needs.
Buy InfinetG LCCA30193-FT6 now and experience unmatched reliability and performance for your high-frequency RF communication needs.
Frequently Asked Questions
Where can I buy L-COM LCCA30193FT6?
You can click on the BUY or RFQ button to purchase LCCA30193FT6 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCCA30193FT6?
You can download the LCCA30193FT6 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCCA30193FT6?
L-COM
