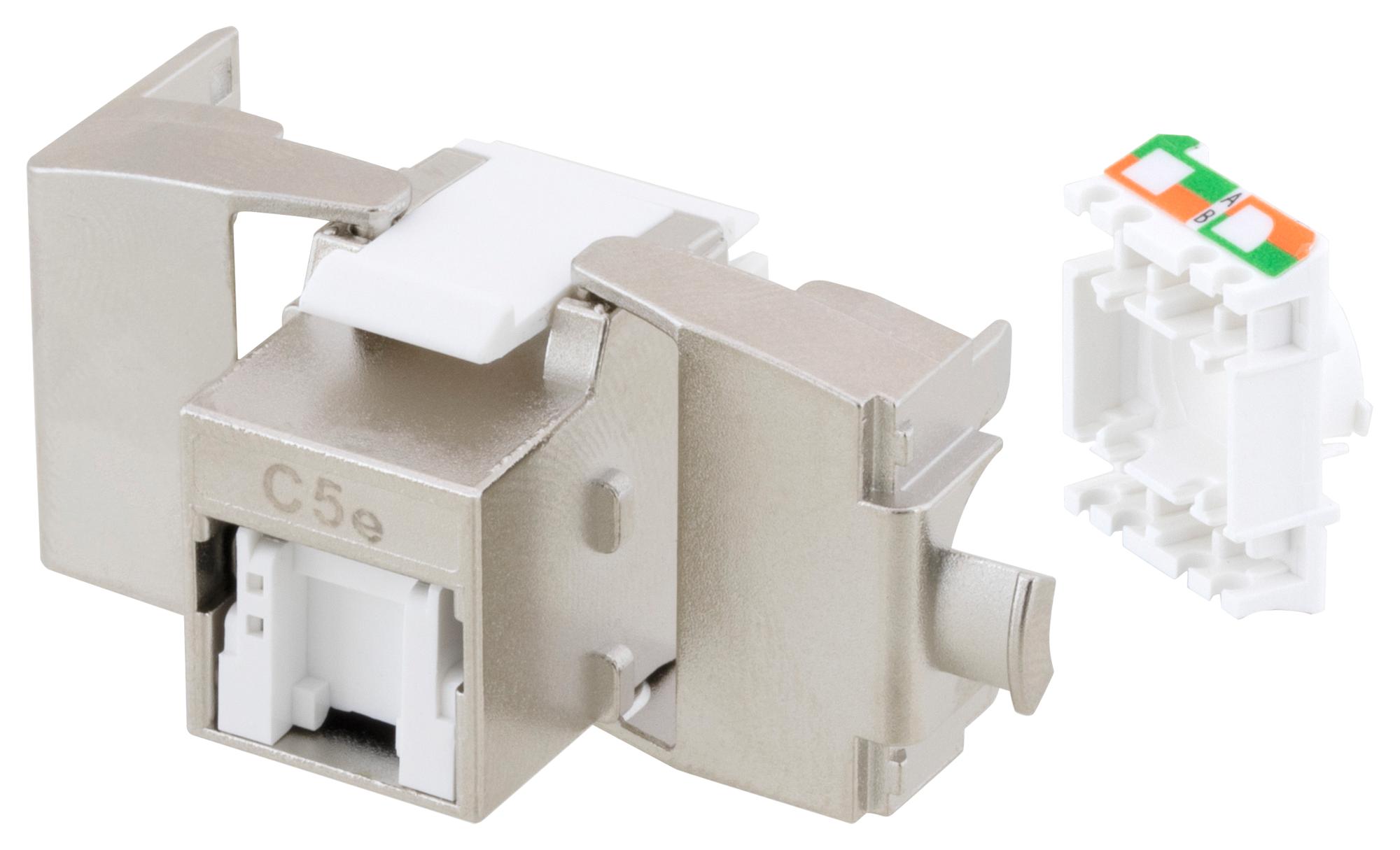

L-COM RJTLC5ESPOE Ethernet Jack
The shielded RJ45 Ethernet jack supports Power over Ethernet Plus and complies with ANSI/TIA-568-C.2, IEC 60603-7, and IEEE 802.3at standards. Constructed with nickel silver alloy shielding and UL94V-0 rated PC housings, it features gold-plated phosphor bronze contacts for enhanced connectivity. Designed for easy installation, it accommodates 22-24 AWG solid conductors, with an insertion life of 750 mating cycles. The device withstands temperatures from -10°C to 60°C and operates reliably up to 1.5 amps at 1000 V AC dielectric withstand voltage. Suitable for networking and industrial applications.
L-COM RJTLC5ESPOE Ethernet Jack Specifications:
- Shielding: Nickel silver alloy
- Housing Material: PC, UL94V-0
- Contact Material: Phosphor bronze, 50u" gold plated
- Spring: SUS304
- IDC Plastic: PC, UL94V-0
- IDC Terminals: Phosphor bronze, tin over nickel
- Operating Temperature: -10°C to 60°C
- Storage Temperature: -40°C to 68°C
- Insulation Resistance: 500 MQ
- Dielectric Strength: 1000 V AC
- Current Rating: 1.5 Amps
- Mating Cycles: 750
- Plug Retention Force: Minimum 1.1 LBF
- Cable Compatibility: 22-24 AWG solid
- Compliance: ANSI/TIA-568-C.2, IEC 60603-7, IEEE 802.3at PoE+
- RoHS Compliant
Buy the L-com RJTLC5ESPOE – Reliable Ethernet Jack for Industrial Applications
Purchase the L-com RJTLC5ESPOE shielded Ethernet jack online today to benefit from high-quality construction, PoE+ support, and compliance with industry standards. Perfect for industrial networking, it features durable nickel silver shielding, gold-plated contacts, and thermal resistance from -10°C to 60°C. Designed for 22-24 AWG wiring, this jack accommodates demanding network environments, providing up to 750 mating cycles and a current capacity of 1.5 amps. Order now for fast delivery and dependable performance in your connectivity projects.
Order your L-com RJTLC5ESPOE Shielded Ethernet PoE+ jack today and ensure robust, reliable networking for your industrial and commercial projects.
Frequently Asked Questions
Where can I buy L-COM RJTLC5ESPOE?
You can click on the BUY or RFQ button to purchase RJTLC5ESPOE from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part RJTLC5ESPOE?
You can download the RJTLC5ESPOE datasheet or visit the L-COM website for support.
Who is the manufacturer of RJTLC5ESPOE?
L-COM
