L-COM LCCA30044FT2 TNC Cable Assembly
L-com's LCCA30044-FT2 is a flexible, low loss TNC male to TNC male cable assembly with a heavy-duty heat shrink boot and LL335i coax, measuring 2 feet. Designed for high-frequency applications up to 18 GHz, it features a tape wrapped PTFE dielectric with an 83% VoP for minimal insertion loss and excellent flexibility. The assembly offers superior shielding efficiency over 95dB through triple shielding layers of silver-plated copper tape and braid. Its durable stainless-steel connectors, along with the heat shrink boot, ensure long life in demanding environments, making it ideal for automated test systems and long cable runs.
L-COM LCCA30044FT2 TNC Cable Assembly Specifications:
- Frequency Range: 18 GHz
- VSWR: 1.35:1
- Velocity of Propagation: 83%
- RF Shielding: >95dB
- Capacitance: 25 pF/ft
- Impedance: 50 Ohms
- Cable Type: LL335i
- Cable Length: 2 FT
- Outer Diameter: 0.3 in
- Inner Conductor: Solid Copper, Silver Plated
- Dielectric: Tape wrapped PTFE
- Shielding Layers: Silver Plated Copper Tape, Aluminum Polyester, Silver Plated Copper Braid
- Connectors: TNC Male to TNC Male
- Connector Contacts: Beryllium Copper, Gold over Nickel
- Connector Body: Passivated Stainless Steel
- Jacket Material: FEP, Green
- Operating Temperature: -55°C to +200°C
- Repeat Bend Radius: 1.5 in
- Weight: 0.139 lbs

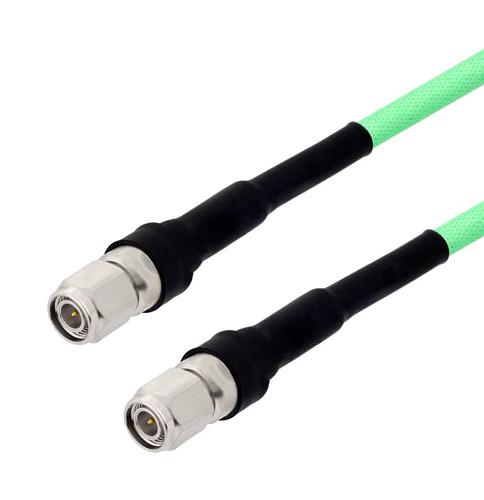

Buy the Buy INFINITG Low Loss TNC Cable Part Number LCCA30044-FT2 Online
Purchase the durable INFINITG TNC Cable Assembly with heavy-duty heat shrink boot online today. Designed for high-frequency signals up to 18 GHz, this assembly features triple shielding for superior RF performance, low insertion loss, and excellent flexibility. Perfect for automated test systems, long cable runs, and laboratory use, it offers reliable, long-lasting service with stainless-steel connectors and a protective FEP jacket. Order now for fast shipment and boost your RF system efficiency with this high-quality, professionally engineered cable.
Order your INFINITG SeriesLCCA30044-FT2 durable cable today and enhance your high-frequency applications with reliable performance and long-lasting durability.
Frequently Asked Questions
Where can I buy L-COM LCCA30044FT2?
You can click on the BUY or RFQ button to purchase LCCA30044FT2 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCCA30044FT2?
You can download the LCCA30044FT2 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCCA30044FT2?
L-COM
