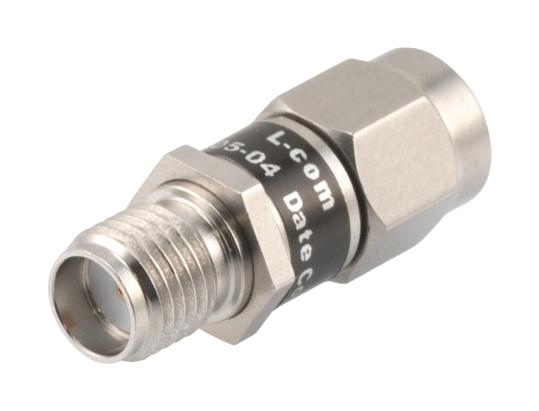

L-COM LCAT100504 RF Attenuator
The 2W/4 dB Fixed Attenuator with SMA Male to SMA Female connectors features a stainless steel body and operates up to 18 GHz. Rated for 2 Watts of CW power, it offers a 4 ±0.5 dB attenuation with a VSWR less than 1.30:1, making it ideal for RF signal attenuation, impedance matching, and protecting measurement equipment. Its compact design measures 0.85 inches in length and 0.312 inches in diameter, ensuring durability and reliable performance in demanding environments from -55°C to +125°C.
L-COM LCAT100504 RF Attenuator Specifications:
- Impedance: 50 Ohms
- Frequency Range: DC to 18 GHz
- Attenuation: 4 ±0.5 dB
- VSWR: <1.30:1
- Input Power: 2 Watts CW, 500 Watts peak
- Connector Type: SMA Male to SMA Female
- Body Material: Stainless Steel
- Size: Length 0.85 in, Diameter 0.312 in
- Operating Temperature: -55°C to +125°C
- Body Plating: Stainless Steel
- Contact Material: Brass, Gold-plated
Buy the Buy INFINITG RF Attenuator Part Number LCAT1005-04 Online
Secure your INFINITG RF Attenuator online today for precise signal reduction and impedance matching. Designed for reliable operation up to 18 GHz, it offers durable stainless steel construction, a compact size, and a 4 dB attenuation suitable for instrumentation, prototyping, and RF testing systems. Its SMA connectors ensure easy installation, making it ideal for protecting sensitive equipment and extending measurement range. Get this high-quality RF component delivered swiftly to optimize your projects with confidence and efficiency.
Order your INFINITG SeriesL1 2W/4 dB Fixed Attenuator today and enhance your RF measurement and signal protection needs with reliable performance.
