L-COM LCCA30269FT15 RF Cable Assembly
The LCCA30269-FT1.5 is a low-loss cable assembly designed for high-frequency applications up to 5.8 GHz. It features a flexible LMR-240 coaxial cable connecting a 4.3-10 male connector to an N female bulkhead connector. The cable is shielded with a double layer of aluminum tape and tinned copper braid, providing shielding effectiveness over 90 dB. It includes PE dielectric material with a VoP of 84%, making it ideal for radio, Wi-Fi, cellular, and antenna systems requiring minimal insertion loss and reliable external connectivity, all shipped same day for quick deployment.
L-COM LCCA30269FT15 RF Cable Assembly Specifications:
- Frequency Range: Up to 5.8 GHz
- Velocity of Propagation: 84%
- RF Shielding: 90 dB
- Group Delay: 1.21 ns/ft
- Capacitance: 24.2 pF/ft
- Inductance: 0.06 uH/ft
- DC Resistance Inner Conductor: 3.2 Ohms/1000ft
- DC Resistance Outer Conductor: 3.89 Ohms/1000ft
- Jacket Spark: 5,000 Vrms
- Cable Length: 1.5 FT
- Impedance: 50 Ohms
- Cable Type: LMR-240
- Inner Conductor Material: Copper
- Outer Conductor Material: Brass, Tri-Metal
- Connector 1: 4.3-10 Male
- Connector 2: N Female Bulkhead
- Mating Cycles: 500
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -70°C to +85°C
- Bend Radius: 2.5 Inches
- Minimum Bend Radius: 0.75 Inches
- Cable Diameter: 0.24 Inches
- Connector Material: Brass, Silver Beryllium Copper, Gold Plating
- Mechanical Strength: Tensile 80 Ibs, Flat Plate Crush 20 Ibs/in
- Environmental Certifications: MIL-STD-348

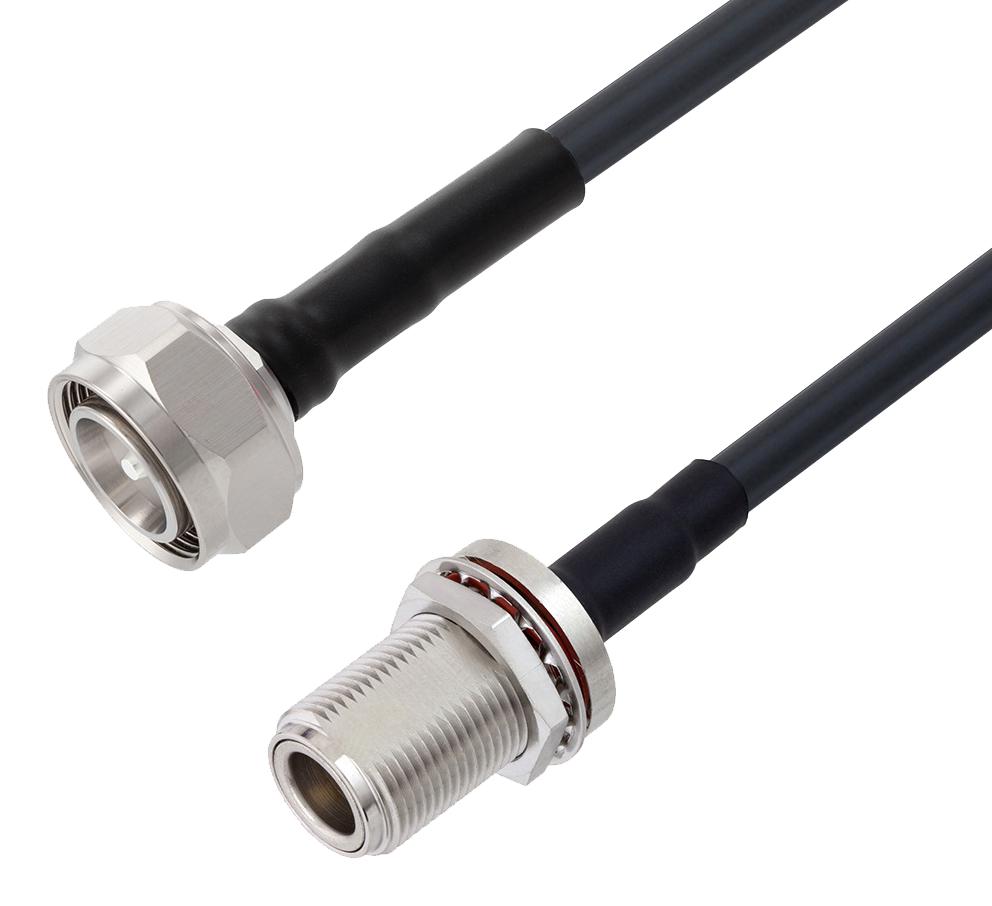

Buy the Infinetg Series RF Cable: LCCA30269 4.3-10 Male to N Female Bulkhead Cable Assembly
Order the Infinetg brand RF cable assembly featuring 4.3-10 male to N female bulkhead connectors and LMR-240 coaxial cable. Operating up to 5.8 GHz, it offers over 90 dB shielding effectiveness, low insertion loss, and superior flexibility, making it ideal for antennas, mobile radios, Wi-Fi, and laboratory use. With same-day shipping and customizable options, this durable and high-performance RF cable assembly is perfect for seamless installations and reliable connectivity in demanding wireless and communication applications.
Buy Infinetg LCCA30269-FT1.5 now and experience unmatched reliability and performance in high-frequency wireless communication systems.
