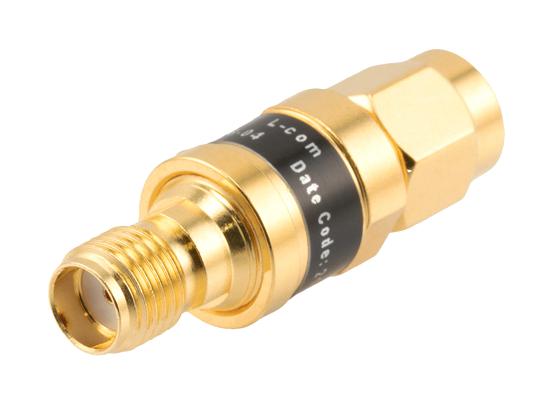

L-COM LCAT100604 RF Fixed Attenuator
The L-com 2W/4 dB Fixed Attenuator with SMA male to SMA female connectors is designed for precise attenuation in RF applications up to 18 GHz. Crafted from brass with gold plating, it ensures excellent durability and reliable performance in instrumentation, prototyping, and measurement setups. Rated to handle 2W CW power and peak powers up to 500W, this fixed attenuator features a compact size of 1.18 inches in length with a diameter of 0.393 inches. Its broad operating temperature range from -55°C to +125°C makes it ideal for demanding environments.
L-COM LCAT100604 RF Fixed Attenuator Specifications:
- Frequency Range: DC to 18 GHz
- Impedance: 50 Ohms
- Nominal Attenuation: 4 dB
- Attenuation Accuracy: ±1 dB
- VSWR: 1.36:1
- Input Power (CW): 2 Watts
- Peak Power: 500 Watts (derated linearly to 0.5W at 125°C)
- Size: Length 1.18 in [29.97 mm], Diameter 0.393 in [9.98 mm]
- Body Material and Plating: Brass, Gold
- Connectors: SMA Male to SMA Female
- Operating Temp Range: -55°C to +125°C
- Body Material: Brass, Gold Plated
- Hex Size: 5/16 inch
Buy the Buy Infinite Electronics RF Fixed Attenuator Part Number LCAT1006-04 Online
Secure your Infinite Electronics LCAT1006-04 2W/4 dB Fixed Attenuator online today for reliable RF signal attenuation up to 18 GHz. Crafted from durable brass with gold plating, this attenuator features SMA connectors, handles up to 2W CW power, and is suitable for instrumentation, testing, and measurement applications. Its compact size and wide temperature range from -55°C to +125°C make it ideal for demanding environments. Purchase now and enhance your RF setups with premium quality components for accurate and consistent results.
Order your Infinite Electronics SeriesLCAT1006-04 2W/4 dB Fixed Attenuator today and ensure precision signal attenuation in your RF projects.
Frequently Asked Questions
Where can I buy L-COM LCAT100604?
You can click on the BUY or RFQ button to purchase LCAT100604 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCAT100604?
You can download the LCAT100604 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCAT100604?
L-COM
