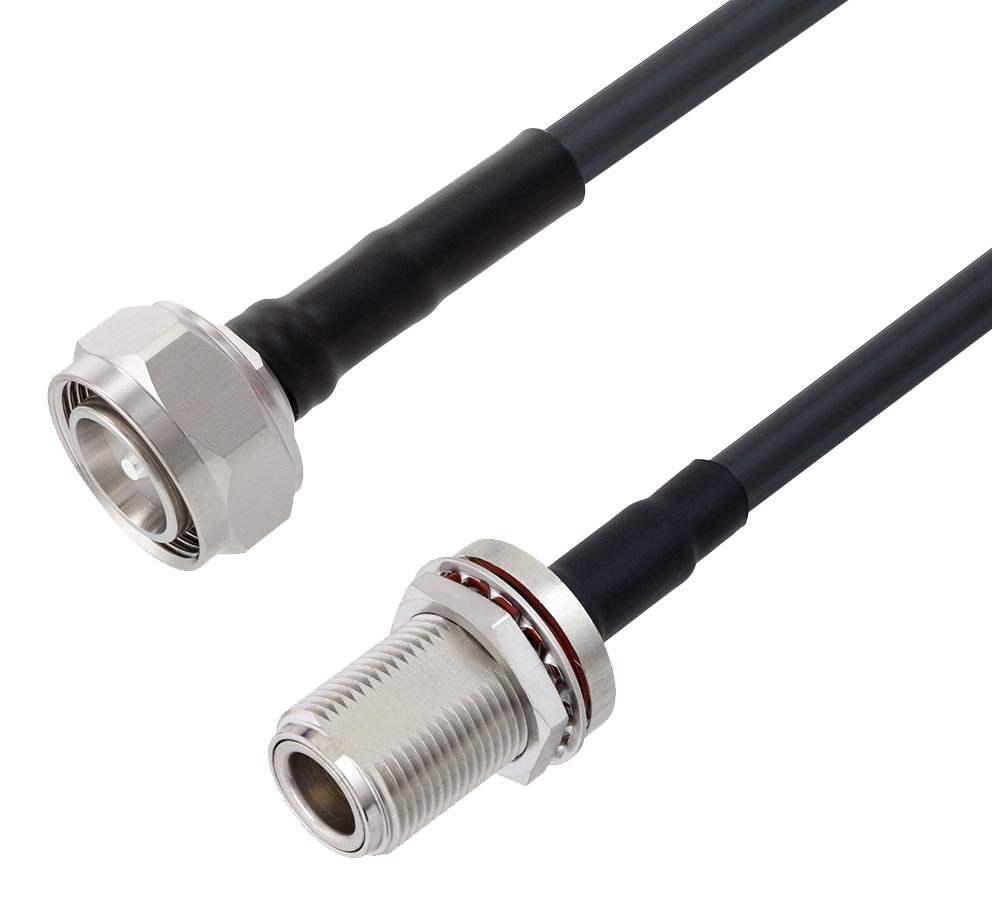

L-COM LCCA30269FT4 RF Coaxial Cable Assembly
The LCCA30269-FT4 is a high-performance, low-loss cable assembly designed for RF and communication systems, featuring a 4.3-10 male to N female bulkhead connectors. Using flexible LMR-240 coax with PE dielectric, this 4-foot assembly operates efficiently up to 5.8 GHz, offering excellent shielding effectiveness over 90dB and minimal insertion loss. Ideal for land mobile radio, cellular, Wi-Fi, and antenna installations, it provides durable construction with shield layers of aluminum tape and tinned copper braid. Its low signal attenuation and robust design make it suitable for demanding outdoor and laboratory applications.
L-COM LCCA30269FT4 RF Coaxial Cable Assembly Specifications:
- Impedance: 50 Ohms
- Cable Type: LMR-240
- Length: 4 ft
- Connector 1: 4.3-10 Male
- Connector 2: N Female Bulkhead
- Maximum Frequency: 5.8 GHz
- Shielding Effectiveness: >90 dB
- Velocity of Propagation: 84%
- Insertion Loss (Typ.): 0.35 dB @ 0.25 GHz, 1.01 dB @ 5.8 GHz
- Capacitance: 24.2 pF/ft
- Inductance: 0.06 uH/ft
- DC Resistance Inner Conductor: 3.2 Ohms/1000 ft
- Outer Conductor Resistance: 3.89 Ohms/1000 ft
- Jacket: PE, Black, Spark 5,000 Vrms
- Operating Temperature: -40°C to +85°C
- Bend Radius: 2.5 in repeated, 0.75 in minimum
- Mechanical Strength: Tensile 80 lbs, Crush 20 lbs/in
- Connectors: Brass with Gold/Silver Plating, MIL-STD-348 compliant
- Certifications: Nos of mating cycles 500, RoHS compliant
Buy the Buy INFINITG RF Cable Part Number LCCA30269FT4 Online
Purchase the INFINITG LCCA30269FT4 low-loss RF cable assembly online. This 4 ft coaxial cable with 4.3-10 male to N female bulkhead connectors offers excellent shielding and minimal signal loss up to 5.8 GHz, perfect for mobile radio, cellular, Wi-Fi, and antenna systems. With superior durability, shielding effectiveness over 90 dB, and flexible design, it ensures reliable connections in demanding outdoor and laboratory environments. Order now for fast, same-day shipping and seamless system integration.
Buy INFINITG LCCA30269FT4 now and enjoy reliable, low-loss signal performance for your RF communication needs.
Frequently Asked Questions
Where can I buy L-COM LCCA30269FT4?
You can click on the BUY or RFQ button to purchase LCCA30269FT4 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part LCCA30269FT4?
You can download the LCCA30269FT4 datasheet or visit the L-COM website for support.
Who is the manufacturer of LCCA30269FT4?
L-COM
