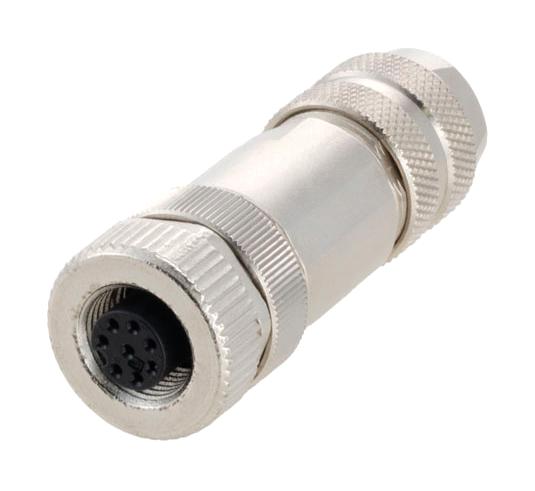

L-COM M12FT8AFS Industrial M12 Field Terminal Shield
The M12 8A-F field terminal shield is designed for reliable electrical connections in industrial environments. Made from nickel-plated brass, it features a screw terminal connection, supporting cable outside diameters of 6mm to 8mm and conductor ranges of 0.25 to 0.5mm² (24-20 AWG). It offers IP67 protection when properly mated and tightened, operates within a temperature range of -40°C to +85°C, and supports a maximum operating voltage of 30V AC/DC with a maximum current per contact of 2A. Suitable for telecom and modular applications, it ensures secure and corrosion-resistant connections.
L-COM M12FT8AFS Industrial M12 Field Terminal Shield Specifications:
- Cable Outside Diameter: 6mm - 8mm
- Conductor Range: 0.25 - 0.5mm² (24-20 AWG)
- Connection Type: Screw terminal
- Material: Brass, Nickel-plated
- Protection: IP67 when mated and tightened
- Temperature Range: -40°C to +85°C
- Operating Voltage: 30 V AC/DC
- Maximum Operating Current: 2 A per contact
- Recommended Torque: 0.6 Nm
- Housing Material: Brass
- Runout Path: Not specified
- Application: Industrial automation, telecom, modular systems
Buy the Buy IndustryConnect M12 8A-F Field Terminal Shield Part Number M12FT8AFS Online
Enhance your industrial wiring with the reliable M12 8A-F field terminal shield. Featuring a screw terminal connection, nickel-plated brass housing, and IP67 protection, it ensures durable and secure connections in harsh environments. Suitable for cable diameters from 6 to 8mm and conductors of 0.25 to 0.5mm², this connector operates reliably from -40°C to +85°C, supporting up to 30V and 2A. Simplify wiring and maintenance with this high-quality industrial connector available now online.
Buy IndustryConnect M12FT8AFS now for reliable, corrosion-resistant industrial wiring with IP67 protection, supporting up to 2A current and versatile cable options.
Frequently Asked Questions
Where can I buy L-COM M12FT8AFS?
You can click on the BUY or RFQ button to purchase M12FT8AFS from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part M12FT8AFS?
You can download the M12FT8AFS datasheet or visit the L-COM website for support.
Who is the manufacturer of M12FT8AFS?
L-COM
