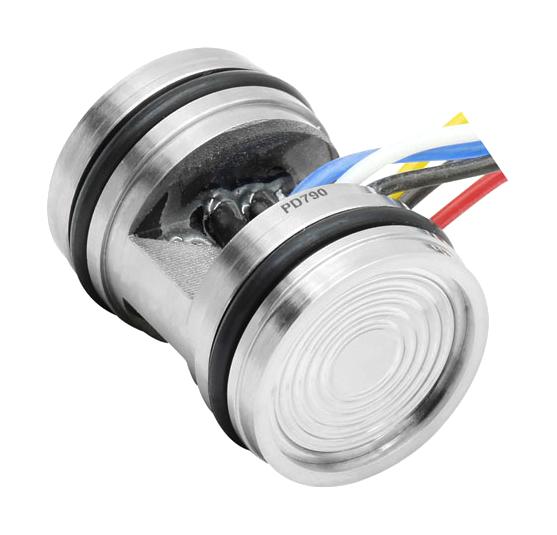

L-COM PD79013M2 Differential Pressure Sensor
The PD790-13M2 is a highly stable differential pressure sensor designed for industrial applications requiring precise measurement of media pressure. Featuring a stainless steel 316L housing and diaphragm, it can measure differential pressure up to 3.5 MPa with high static pressure capacity of 20 MPa and 1.5x overpressure protection. It offers wide temperature compensation, zero correction, and consistent performance with a full-scale output of 60 mV DC. Suitable for gases and liquids, it is ideal for process control, pressure calibration, and flow measurement systems, ensuring reliable, accurate readings in demanding environments.
L-COM PD79013M2 Differential Pressure Sensor Specifications:
- Pressure Range: 0-3.5 MPa
- Full Scale Output: 60 mV DC
- Zero Output: 3 mV DC
- Linearity: +0.25 % Full Scale
- Repeatability: +0.075 % Full Scale
- Hysteresis: ±0.075 % Full Scale
- Overpressure: 15 x Full Scale
- Material: Stainless Steel 316L
- Diaphragm: Stainless Steel 316L
- Operating Temperature Range: 0-50°C
- Shock Tolerance: 0.1g Max
- Humidity: 60% RH+10%
- Power Supply: 10 VDC, typically 2 mA
- Static Pressure Capacity: 20 MPa
- Long Term Stability: ±0.3 to 0.5 % Full Scale per year
- Certifications: ROHS, CE
- Weight: 36.29 grams
- Response Time: 1 ms (10%-90%)
Buy the Buy INFINITG Differential Pressure Sensor Part Number PD79013M2 Online
Purchase the INFINITG Differential Pressure Sensor now to ensure precise measurement in your industrial process control, flow measurement, or pressure calibration tasks. Featuring stainless steel 316L construction, it supports differential pressure up to 3.5 MPa with high static pressure capacity of 20 MPa. Its robust design offers wide temperature compensation, excellent long-term stability, and reliable performance for gases or liquids across demanding environments. Order online today for quick delivery and guaranteed quality to enhance your measurement systems.
Get INFINITG PD79013M2 today—designed for high accuracy and durability in industrial pressure measurement applications.
Frequently Asked Questions
Where can I buy L-COM PD79013M2?
You can click on the BUY or RFQ button to purchase PD79013M2 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part PD79013M2?
You can download the PD79013M2 datasheet or visit the L-COM website for support.
Who is the manufacturer of PD79013M2?
L-COM
