L-COM WPBHC6110 Ethernet Connector

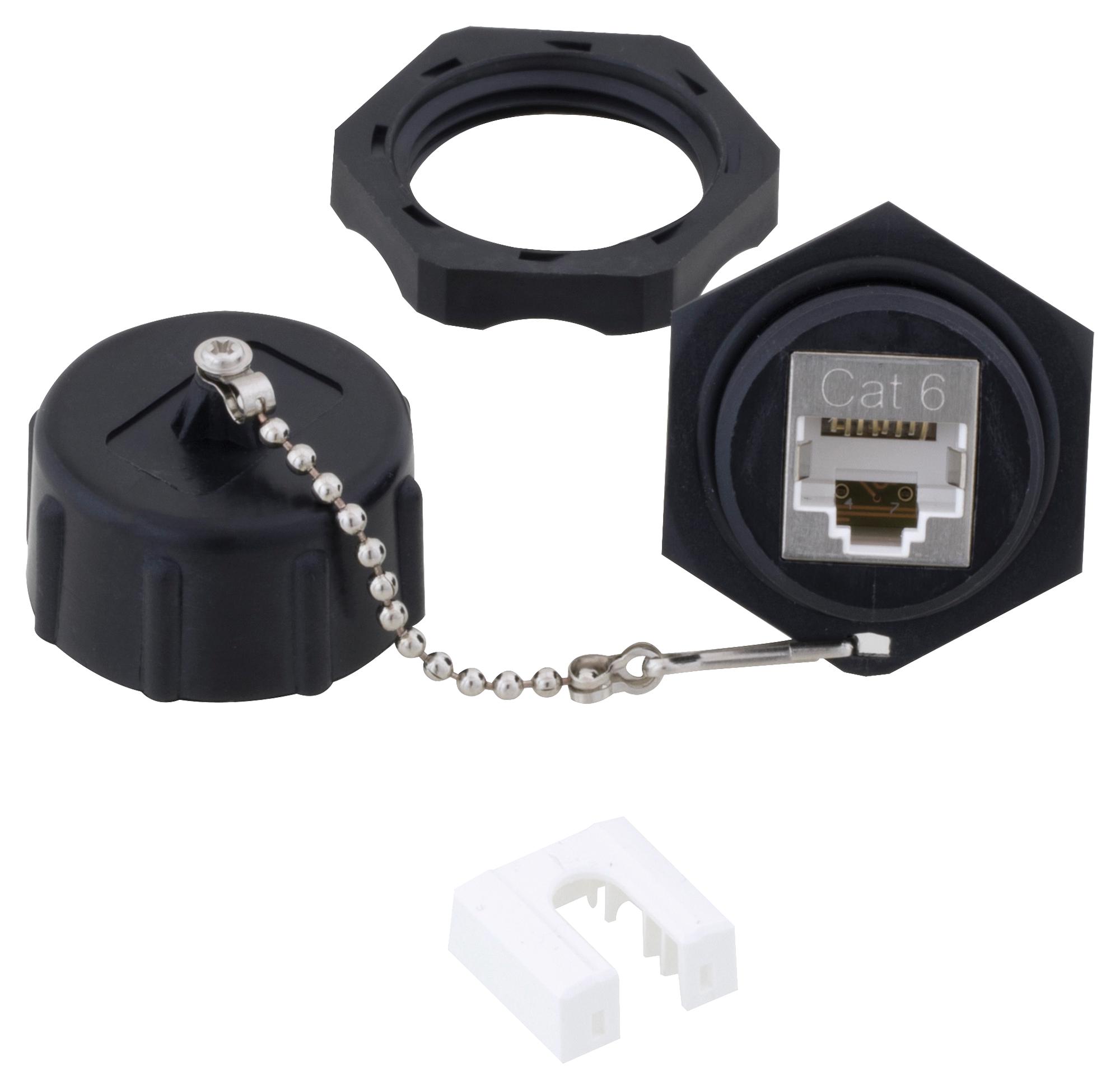

This C6 RJ45/110 IP67 bulkhead PoE+ connector with dust cap is designed for rugged industrial and telecom environments. Made from durable PBT + GF main body with nickel-plated brass shield, it features gold-plated phosphor bronze contacts and UL94V-0 rated PC insulation. It supports Category 6 standards, network speeds, and PoE+ power delivery. Operating within -10°C to +60°C, it offers IP67 moisture protection when the dust cap is engaged. Suitable for heavy-duty applications requiring reliable, sealed Ethernet connectivity with up to 750 mating cycles.
L-COM WPBHC6110 Ethernet Connector Specifications:
- Material: Main body made of PBT + GF, shield is brass, nickel plated
- Contacts: Phosphor bronze, 50u gold plated
- Insulation: PC, UL94V-0 rated
- Operating Temperature: -10°C to +60°C
- Storage Temperature: -40°C to +48°C
- Ingress Protection: IP67 when dust cap is engaged
- Electrical Resistance: Insulation resistance 500 MΩ, contact resistance 20 mΩ
- Dielectric Withstanding Voltage: 1000 V AC, 1.5 A rated current
- Dimensions: Approximately 1.46 inches in length, overall dimensions based on model
- Insertion Life: 750 mating cycles
- Impact Tool Compatibility: 110 style punch down tool for 22-24 AWG solid wires
- Packaging: Individually packaged according to L-Com standard PS-0031
- Standards: Compliant with IEC 60603-7, ISO/IEC 11801, IEEE 802.3at PoE+
- Additional features: Shielded, single-port bulkhead connector with removable dust cap, supports Category 6 applications
Buy the L-Com Series IP67 Ethernet Connector: WPBHC6110
Enhance your network setups with this rugged IP67 Ethernet connector designed for harsh environments. Featuring PoE+ capabilities, high durability, and seamless installation, it ensures reliable data transmission in industrial, telecom, and military applications. Its sealed design prevents moisture ingress, and the IP67 rating offers protection against dust and water when the dust cap is engaged. Easy to install with standard tools, this connector supports 750 mating cycles for long-term performance and comes individually packaged for convenience. Upgrade your networking infrastructure today for secure, weatherproof connectivity.
Buy L-Com WPBHC6110 now and experience unmatched reliability and performance in sealed Ethernet networking for industrial and telecom applications.
Frequently Asked Questions
Where can I buy L-COM WPBHC6110?
You can click on the BUY or RFQ button to purchase WPBHC6110 from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part WPBHC6110?
You can download the WPBHC6110 datasheet or visit the L-COM website for support.
Who is the manufacturer of WPBHC6110?
L-COM
