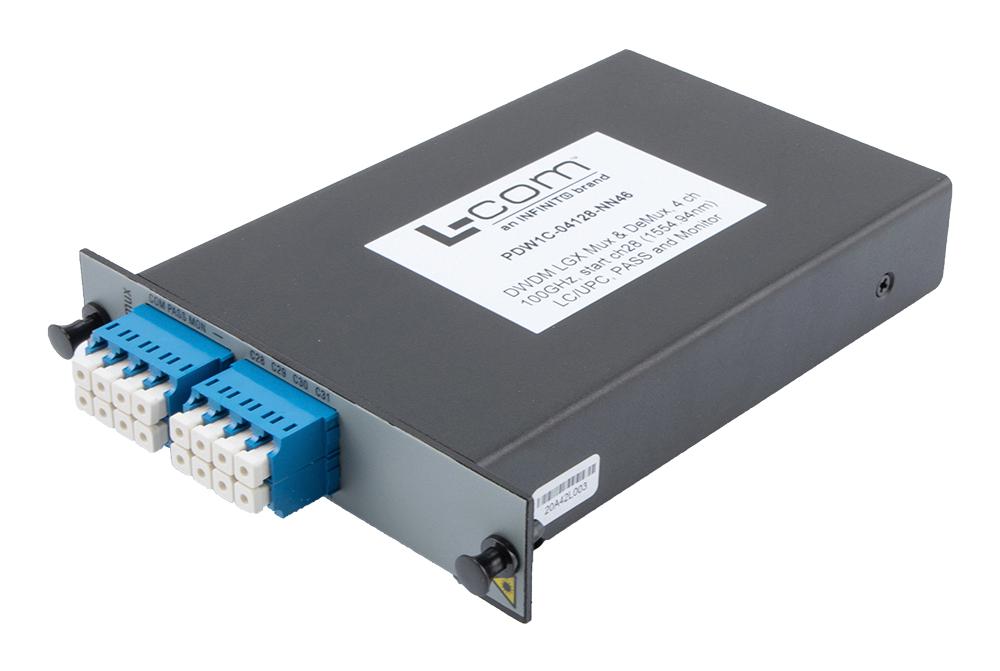

L-COM PDW1C04128NN46 DWDM Filter Module
This is a standard LGX filter module featuring integrated multiplexing and demultiplexing (mux/demux) functionality with four DWDM channels. It is equipped with LC/UPC connectors and offers an optional monitor port on both the mux and demux units. The module supports an express channel pass-through, allowing all DWDM channels not present on the filter to pass through, making it highly upgradeable. It is a dual-fiber filter that transmits a multiplexed signal and receives a composite signal for demultiplexing. The filter operates starting at channel 24 (1558.98 nm) with 100 GHz spacing. It is housed in an LGX cassette suitable for single-mode fiber networks, with dual-fiber configuration ideal for metro transport applications. Designed for side-by-side mux and demux functions, it is suitable for inside plant (ISP) operations.
L-COM PDW1C04128NN46 DWDM Filter Module Specifications:
- Operating Wavelength: 1527.22 - 1564.68 nm
- Pass Port Wavelength: 1527.22 - 1564.68 nm
- Pass Port Insertion Loss: 2 dB
- Pass Port Isolation: 12 dB
- Pass Band: 0.68 - 0.93 nm
- Pass Band Ripple: 0.5 dB
- Center Wavelength (Channel): 1552.52 - 1554.94 nm
- Channel Spacing: 0.83 nm
- Channel Insertion Loss: 25 dB
- Return Loss: 45 dB
- Directivity: 50 dB
- PDL: 0.25 dB
- PMD: 0.2 Ps
- Power Handling: 300 mW
- Adjacent Channel Isolation: 28 dB
- Non-Adjacent Channel Isolation: 40 dB
- Channel to Monitor Port IL: 25 dB
- COM to Monitor Port IL: 23 dB
- IL Thermal Stability: 0.005 dB/°C
- Wavelength Thermal Stability: 0.002 nm/°C
- Operating Temperature Range: -20 to +65°C
- Storage Temperature Range: -40 to +85°C
- Humidity: 5-95% RH
Buy the L-com PDW1C04128NN46 – Reliable DWDM Filter for Industrial Applications
Purchase the L-com PDW1C04128NN46 DWDM filter online today to upgrade your fiber optic infrastructure. This 4-channel LGX module offers precise multiplexing and demultiplexing with 100 GHz spacing, LC/UPC connectors, and an optional monitor port. Its dual-fiber design ensures reliable data transmission for metro transport and inside plant applications. With features like high isolation and low insertion loss, this passive filter module guarantees stable operation and easy scalability for your network needs. Order now for fast shipping and expert support.
Order your L-com PDW1C04128NN46 DWDM filter today and enhance your fiber optic network with high-performing multiplexing capabilities.
