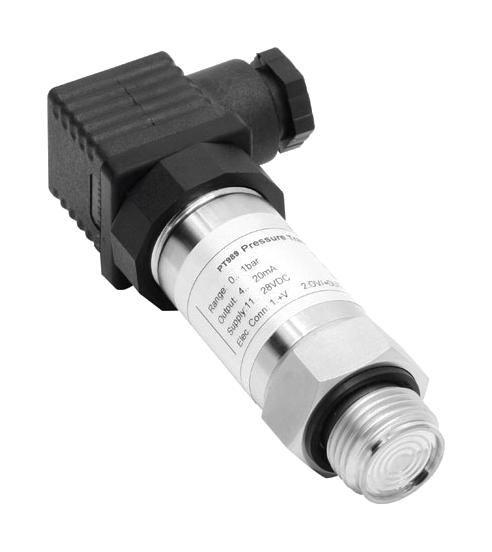

L-COM PT9895PV1J22B1C10G Pressure Transmitter
The PT989-5PV1J22B1C10G is a compact, highly stable gauge pressure transmitter suitable for industrial process control, water management, and chemical industries. Crafted from stainless steel, it measures 0-5 psi with an electrical output of 0-5V and operates on 11-28V power supply. It features an NPT1/2 male process connection, DIN 43650 electrical connector, and is IP65 certified for environmental resistance. Its precision and durability make it ideal for measuring gas and liquid pressures accurately in demanding environments, ensuring reliable performance over long-term use.
L-COM PT9895PV1J22B1C10G Pressure Transmitter Specifications:
- Pressure Range: 0-5 psi
- Accuracy: 40.5% Full Scale
- Zero Thermal Error: +0.05% Full Scale/°C
- Span Thermal Error: +0.05% Full Scale/°C
- Thermal Compensation: 0-50°C
- Long-Term Stability: +0.3% Full Scale/year
- Overpressure Limit: 1.5 x Full Scale
- Output Signal: 0-5V
- Power Supply: 11-28 VDC
- Maximum Output Load: 10,000Ω
- Electrical Connection: DIN 43650
- Process Connection: NPT1/2 Male
- Materials: Diaphragm Stainless Steel 316L, Tubing Stainless Steel 304, Plug Housing Plastic, Pin Kovar, O-Ring Viton
- Ingress Protection: IP65
- Operating Temperature: -30°C to 80°C
- Storage Temperature: -40°C to 120°C
- Certifications: ROHS and CE Compliance
Buy the Buy INFINITG Pressure Transmitter Part Number PT989-5PV1J22B1C10G Online
Order the INFINITG PT989-5PV1J22B1C10G pressure transmitter online now. Its compact size, stainless steel durability, and IP65 rated enclosure make it perfect for industrial and water management applications. With a 0-5 psi range, 0-5V output, and operating voltage of 11-28V, this gauge pressure sensor features high accuracy and long-term stability, ensuring reliable measurements in demanding environments. Purchase today for quality, precision, and durability built to last in chemical plants, water treatment, and process control systems.
Get INFINITG PT989-5PV1J22B1C10G today—designed for precise pressure measurement in industrial environments with long-lasting reliability.
