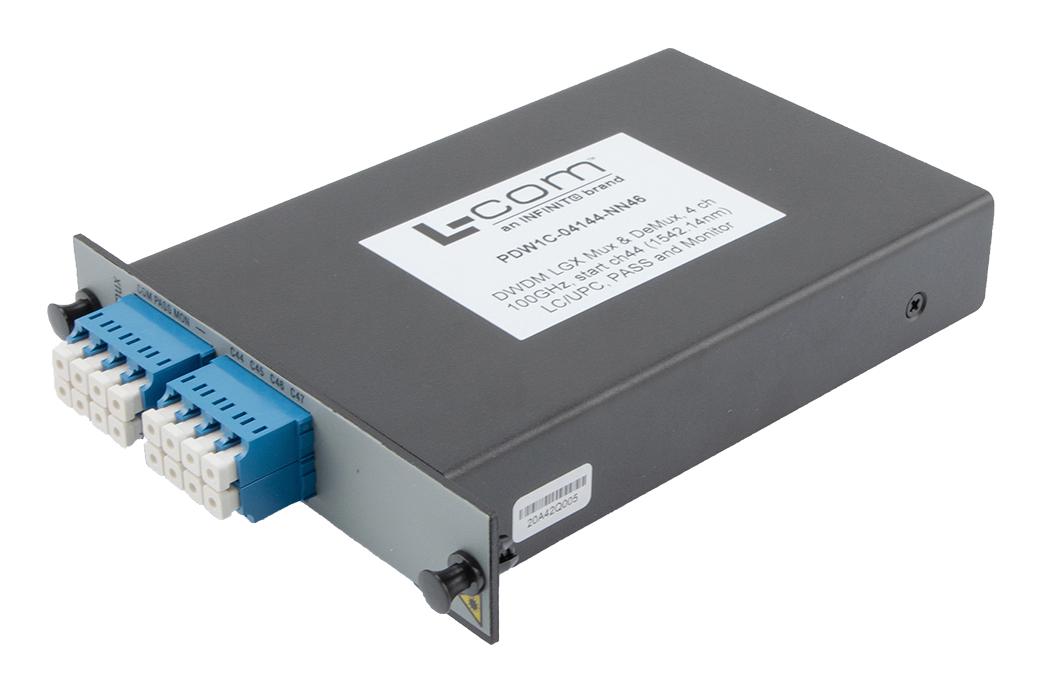

L-COM PDW1C04144NN46 DWDM Filter Module
This is a standard LGX filter module featuring combined mux and demux functionality with four DWDM channels. It is equipped with LC/UPC connectors and includes an optional monitor port on both the multiplexer and demultiplexer units. The device supports express channels that allow passing all DWDM channels not processed by the filter, offering an upgradable and flexible solution. It is a dual-fiber filter design that transmits a multiplexed signal on one fiber and receives a composite signal on the other. Operating starting from channel 44 at 1542.14 nm with 100 GHz channel spacing, it is housed in an LGX cassette suitable for single-mode fiber networking, metro transport applications, and inside plant (ISP) operations. Its configuration is ideal for side-by-side mux and demux functions in dual-fiber setups.
L-COM PDW1C04144NN46 DWDM Filter Module Specifications:
- Connector Type LC/UPC
- Number of Channels 4
- Module Function Mux/DeMux
- Filter Type DWDM
- Operating Wavelength 1527.22 1564.68 nm
- Pass Port Wavelength 1527.22 1564.68 nm
- Pass Port Insertion Loss 2 dB
- Pass Port Isolation 12 dB
- Pass Band 0.68 0.93 nm
- Pass Band Ripple 0.5 dB
- Center Wavelength (Channel) 1539.77 1542.14 nm
- Channel Spacing 0.83 nm
- Channel Insertion Loss 25 dB
- Return Loss 45 dB
- Directivity 50 dB
- PDL 0.25 dB
- PMD 0.2 Ps
- Power Handling 300 mW
- Adjacent Channel Isolation 28 dB
- Non-Adjacent Channel Isolation 40 dB
- Channel to Monitor Port IL 25 dB
- COM to Monitor Port IL 23 dB
- IL Thermal Stability 0.005 dB/°C
- Wavelength Thermal Stability 0.002 nm/°C
- Operating Temperature -20 to +65°C
- Storage Temperature -40 to +85°C
- Humidity 5-95% RH
Buy the Buy Infinite Electronics DWDM Filter Part Number PDW1C04144NN46 Online
Purchase the Infinite Electronics DWDM filter module online for rapid, reliable delivery. This 4-channel LGX filter features LC/UPC connectors, 100GHz spacing starting at channel 44, and optional monitor ports. Ideal for single-mode fiber networks, metro transport, and inside plant configurations, it offers high performance with low insertion loss and excellent channel isolation. Designed for easy integration and upgradeability, this device ensures a stable, efficient, and scalable optical communication setup. Order now to ensure high-quality, quick fulfillment for your telecommunications projects.
Get Infinite Electronics DWDM Pass Filter today—built for precision and long-lasting durability in fiber optics networks.
