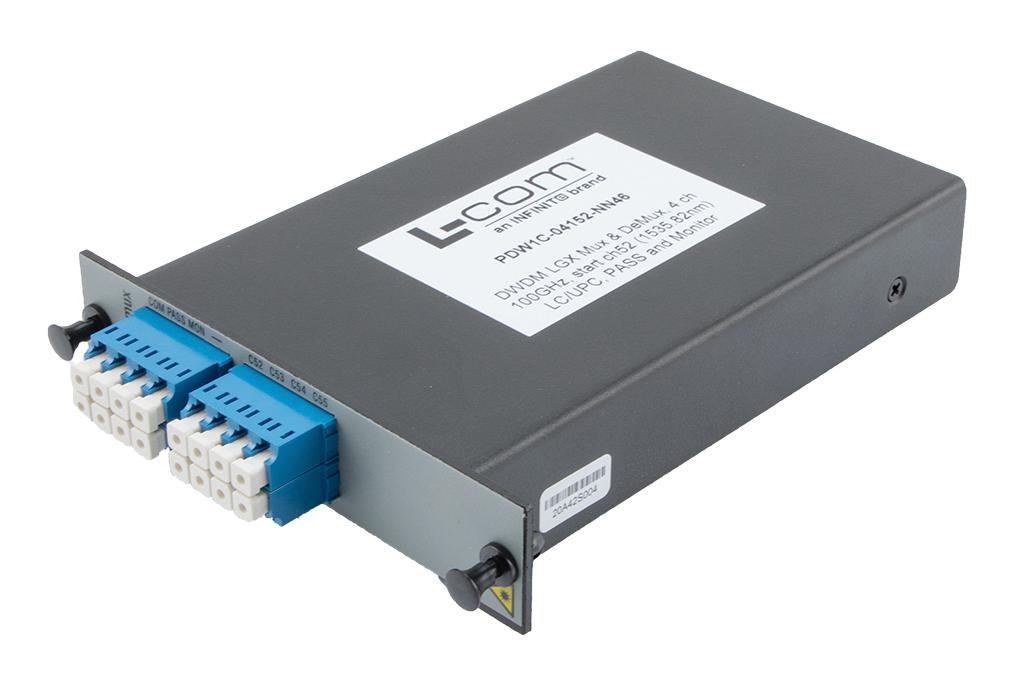

L-COM PDW1C04152NN46 DWDM Filter Module
This LGX filter module features combined mux and demux functionality with four DWDM channels, designed for single-mode fiber networking and metro transport applications. It includes LC/UPC connectors and offers a monitor port option on both the mux and demux units, with a 1% monitor port. The device operates starting from channel 52 at 1535.82 nm with 100 GHz channel spacing. It supports side-by-side multiplexing and demultiplexing functions, making it suitable for inside plant (ISP) operations and dual-fiber setups. The module utilizes an LGX cassette for installation and provides an upgradable express channel feature to pass all DWDM channels not present on the filter, offering a flexible and scalable solution.
L-COM PDW1C04152NN46 DWDM Filter Module Specifications:
- Connector Type: LC/UPC
- Channels: 4
- Module Function: Mux/DeMux
- Filter Type: DWDM
- Operating Wavelength: 1527.22 to 1564.68 nm
- Pass Port Wavelength: 1527.22 to 1564.68 nm
- Pass Port Insertion Loss: 2 dB
- Pass Port Isolation: 12 dB
- Pass Band: 0.68 to 0.93 nm
- Pass Band Ripple: 0.5 dB
- Center Wavelength (Channel): 1533.47 to 1535.82 nm
- Channel Spacing: 0.83 nm
- Channel Insertion Loss: 25 dB
- Return Loss: 45 dB
- Directivity: 50 dB
- PDL: 0.25 dB
- PMD: 0.2 Ps
- Power Handling: 300 mW
- Adjacent Channel Isolation: 28 dB
- Non-Adjacent Channel Isolation: 40 dB
- Channel to Monitor Port IL: 25 dB
- COM to Monitor Port IL: 23 dB
- IL Thermal Stability: 0.005 dB/°C
- Wavelength Thermal Stability: 0.002 nm/°C
- Operating Temperature Range: -20 to +65°C
- Storage Temperature Range: -40 to +85°C
- Humidity: 5-95% RH
Buy the L-com PDW1C04152NN46 – Reliable DWDM for Industrial Applications
Purchase the L-com DWDM filter module online today for reliable optical multiplexing and demultiplexing solutions. Featuring four channels and 100GHz spacing, this device supports single-mode fiber networks with LC/UPC connectors, ideal for metro transport and inside plant applications. Its dual-fiber design, monitor port option, and express channel make it scalable and upgradable for future needs. With same-day shipping and expert support, you can ensure your optical network runs efficiently and securely, reducing downtime and increasing throughput. Order now for high-quality performance.
Buy L-com PDW1C04152NN46 now and experience unmatched reliability and performance in high-capacity optical networks.
