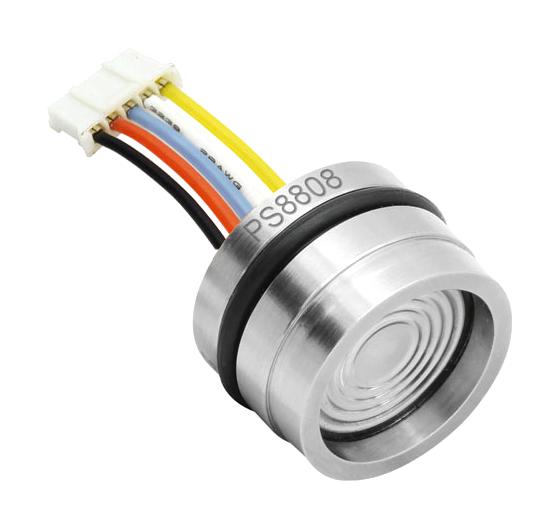

L-COM PS88081000K3CBNG Pressure Sensor
The PS8808-1000k3CBNG is a digital gauge pressure sensor with a 0-1 MPa range, utilizing a stainless steel 316L diaphragm and silicone oil transfer. It offers I2C communication, 3.3V DC power, and accurate pressure measurement suitable for industrial and liquid pressure applications. The sensor features temperature compensation, nonlinear correction, and compact design, making it ideal for process control, calibration, and HVAC systems. It provides reliable long-term stability, overpressure protection, and robust environmental resistance, ensuring consistent and precise liquid and gas pressure monitoring in demanding environments.
L-COM PS88081000K3CBNG Pressure Sensor Specifications:
- Pressure Range: 0-1 MPa
- Accuracy (Pressure): +0.5 % Full Scale
- Temperature Accuracy: 1.5 °C
- Long Term Stability: 40.3 % Full Scale/year
- Overpressure: 1.5 x Full Scale
- Electrical Output: 5%-95%
- Power Supply: 3.3 VDC ±0.1 V
- Supply Current: 2.5 mA
- Sampling Interval: 1.5 ms
- Electrical Connection: 5-pin PH2.0
- Material: Stainless Steel 316L for diaphragm and housing
- Operating Temperature: -10°C to 80°C
- Storage Temperature: -40°C to 125°C
- Shock Resistance: 10g, 20Hz-2000Hz
- Impact Resistance: 100g, 11ms
- Certifications: ROHS, CE Compliant
Buy the INFINITG Series PS8808 Pressure Sensor: PS8808-1000k3CBNG
Purchase the INFINITG PS8808-1000k3CBNG digital pressure sensor online today and ensure accurate liquid and gas pressure monitoring in your industrial systems. Featuring stainless steel 316L construction and I2C communication, this sensor provides reliable performance with high accuracy and stability across wide temperature ranges. Its robust design, overpressure protection, and precise sensing capabilities make it ideal for process control, HVAC, calibration, and liquid pressure applications. Order now to improve your system’s efficiency with top-quality pressure measurement solutions.
Buy INFINITG PS8808-1000k3CBNG now and experience unmatched reliability and precise pressure measurement for industrial applications.
