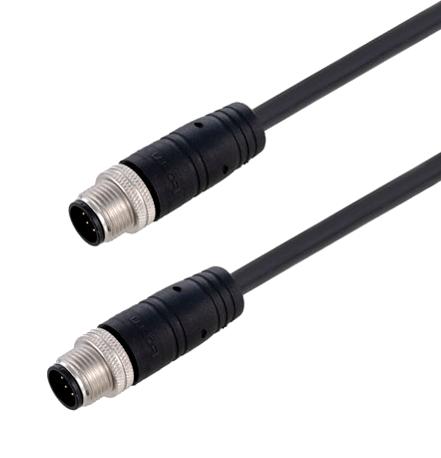

L-COM TRG881P4B1M M12 8-Pin Male Connector
This M12 8-pin male-to-male cable assembly features a black polyurethane jacket, offering oil, sunlight, and chemical resistance suitable for industrial applications. It is designed with a thermoplastic polyurethane insulator, brass nickel-plated screw nuts, and phosphor bronze contacts with gold plating, ensuring reliable connectivity. The assembly supports a maximum voltage of 30V AC/DC and a maximum current of 2A. It operates within a temperature range of -25°C to +80°C, with an ingress protection rating of IP67 when mated, making it ideal for robust industrial and automation systems.
L-COM TRG881P4B1M M12 8-Pin Male Connector Specifications:
- Jacket Material: Polyurethane, black, oil, sunlight, and chemical resistant
- Insulator: Thermoplastic polyurethane (TPU)
- Contacts: Phosphor bronze, 15u" min, gold plated
- Screw Nut: Brass, nickel plated
- Number of Pins: 8-position A-coded
- Voltage Rating: 30 V AC/DC
- Max Current: 2A
- Operating Temperature: -25°C to +80°C
- Ingress Protection: IP67 (mated)
- Supported Cable Lengths: 0.5m, 1.0m, 2.0m, 3.0m, 5.0m, 10.0m
- Cable Diameter: .205 inches (5.20 mm)
Buy the Industrial Connectors M12P8 – Reliable M12 Connector for Industrial Applications
Order the M12 8-pin male-to-male cable assembly now to ensure robust and reliable connections in industrial and automation environments. Featuring a durable polyurethane jacket, gold-plated contacts, and IP67 protection, this cable is ideal for demanding applications. Available in multiple lengths, it supports up to 30V and 2A, with operating temperatures from -25°C to +80°C. Purchase online today for quick delivery and trusted quality, perfect for industrial machinery, control systems, and automation projects.
Get TRG881P4B1M today—built for precision and long-lasting durability in industrial automation systems.
Frequently Asked Questions
Where can I buy L-COM TRG881P4B1M?
You can click on the BUY or RFQ button to purchase TRG881P4B1M from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part TRG881P4B1M?
You can download the TRG881P4B1M datasheet or visit the L-COM website for support.
Who is the manufacturer of TRG881P4B1M?
L-COM
