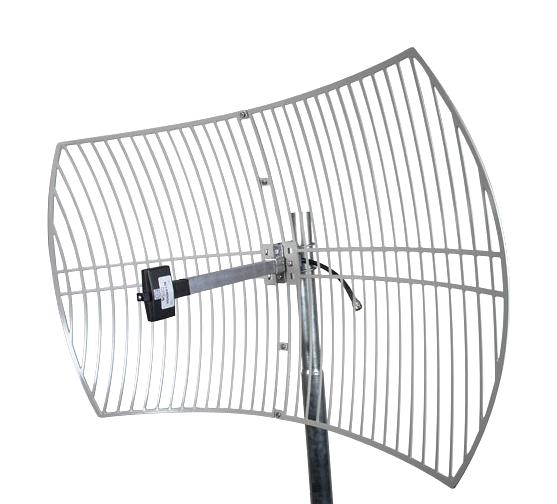

L-COM HG2424EG1NM Wireless Grid Antenna
The L-com HG2424EG-1-NM is a lightweight, high-gain reflector grid antenna designed for long-range Wi-Fi systems, wireless bridges, and point-to-multipoint applications within 2.4 GHz frequency. Made from die-cast aluminum with UV-resistant powder coating, it offers excellent weather durability and easy assembly. With a frequency range of 2400-2500 MHz, 24 dBi gain, and polarized operation, it includes Type N male connectors, mounting hardware, and features a 14° vertical and 12° horizontal beamwidth. Its robust construction and high performance make it ideal for industrial wireless networks.
L-COM HG2424EG1NM Wireless Grid Antenna Specifications:
- Frequency Range: 2400-2500 MHz
- Gain: 24 dBi
- Input VSWR: 1.5
- Impedance: 50 Ohms
- Front to Back Ratio: 31 dB
- Horizontal HPBW: 12 Degrees
- Vertical HPBW: 14 Degrees
- Input Power: 100 Watts
- Size: Length 23.622 in, Width 38.976 in, Height 50 in
- Mounting Mast Diameter: 1.57 to 1.96 in
- Weight: 6.61 lbs
- Operating Temperature: -40°C to +70°C
- Wind Survivability: 124 MPH
- Humidity Range: 5% to 95%
- Material: Die-cast aluminum, UV stable powder coat finish
- Connector: N Male
- Applications: Wi-Fi Backhaul, Point-to-Point, Point-to-Multipoint, Wireless Bridges
Buy the L-com HG2424EG-1-NM – Reliable Wireless Antenna for Industrial Applications
Enhance your wireless network with this high-performance, lightweight 24 dBi grid antenna designed for 2.4 GHz applications. Made from durable die-cast aluminum with UV-resistant coating, it offers excellent weather resistance and easy installation with included mounting hardware. Ideal for Wi-Fi backhaul, wireless bridges, and point-to-multipoint setups, its high gain and directional beamwidth ensure optimal signal quality across long distances. Perfect for industrial and commercial use, ensuring reliable connectivity in demanding environments.
Buy L-com HG2424EG-1-NM now and experience unmatched reliability and high gain performance for long-range wireless communications.
