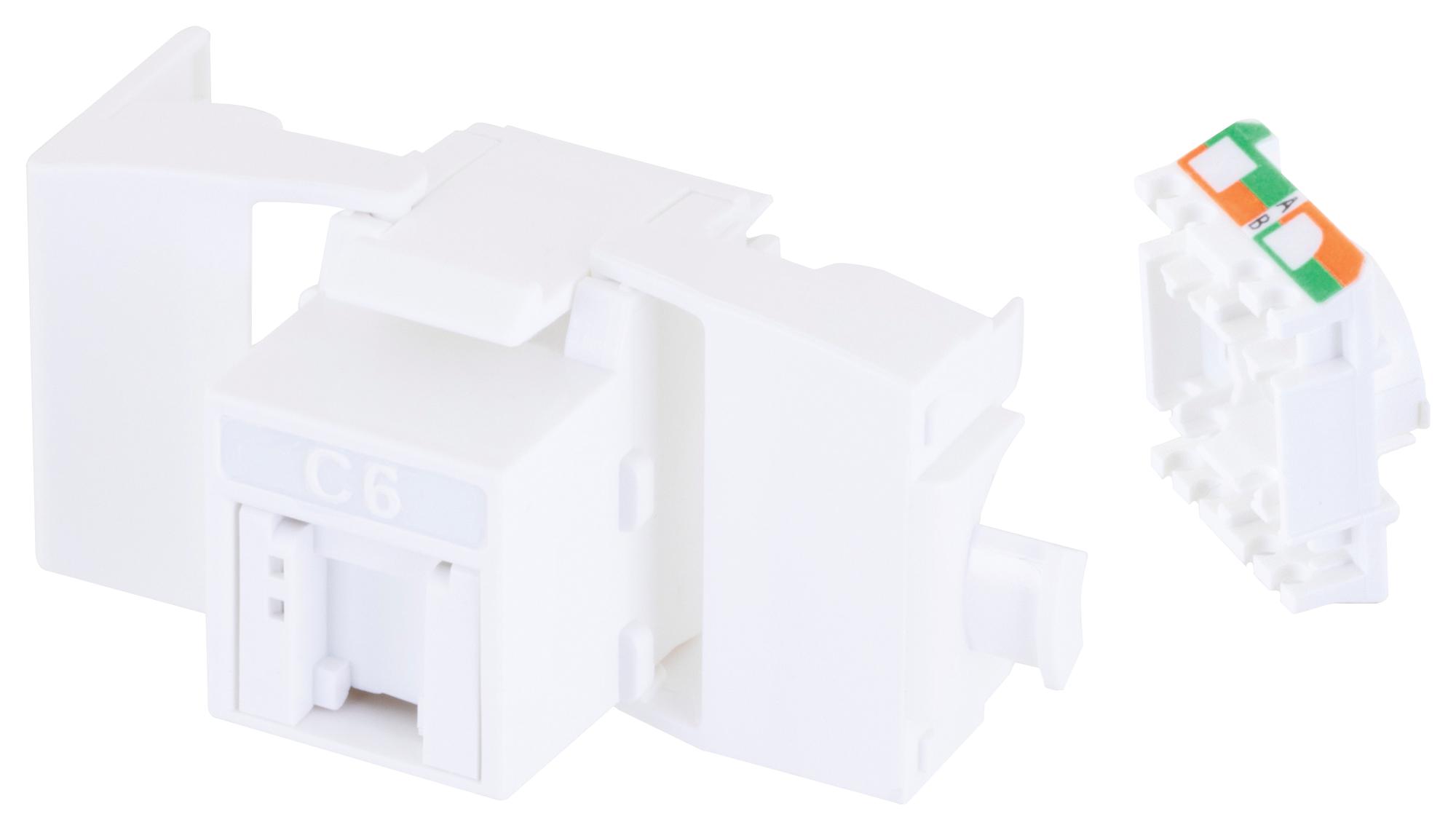

L-COM RJTLC6POE RJ45 Keystone Jack
The RJ45 Keystone Jack with PoE support is designed for high-performance Ethernet networks, compliant with Category 6 standards and IEEE 802.3 AT PoE+. Made from UL94V-0 rated PC and ABS materials with phospor bronze contacts plated with 50µ'' gold, it ensures reliable connections and durability. It features a shutter for protection, supports 22-24 AWG solid conductors, and operates within a temperature range of -10°C to 60°C. Suitable for structured cabling and designed for easy installation with an insertion life of 750 cycles.
L-COM RJTLC6POE RJ45 Keystone Jack Specifications:
- Material: UL94V-0 rated PC and ABS
- Contacts: Phosphor bronze, 50µ'' gold plated
- Operating Temperature: -10°C to 60°C
- Storage Temperature: -40°C to 68°C
- Insulation Resistance: 500 MΩ
- Dielectric Withstanding Voltage: 1000 V AC
- Current Rating: 1.5 Amps
- Compatible with RJ45 8P8C plugs
- Insertion Life: 750 mating cycles
- Plug Retention Force: Minimum 11 LBF
- Supports Power over Ethernet Plus (PoE+)
- Complies with Category 6 rated standards
- Mating and Un-mating Connectors IEC 60512-99-001
- Conforms to IEEE 802.3 AT PoE+
- Index Terminals: Tinned, phosphor bronze for durability
- Housing: PC, UL94V-0 rated
Buy the Buy L-Com RJ45 Keystone Jack Part Number RJTLC6POE Online
Enhance your network setup with the high-performance L-Com RJTLC6POE Category 6 keystone jack. Designed for durability and reliable data transfer, it supports Power over Ethernet Plus (PoE+), making it perfect for a variety of network applications. Crafted from UL94V-0 rated materials, it ensures safety and durability in demanding environments. Easy to install with a proven insertion life of 750 cycles, this keystone jack is compatible with standard RJ45 8P8C plugs. Improve your network reliability today with this essential, user-friendly component for structured wiring systems.
Order your L-Com RJTLC6POE Category 6 PoE RJ45 Keystone Jack today and ensure reliable, high-speed Ethernet connections for your network projects.
