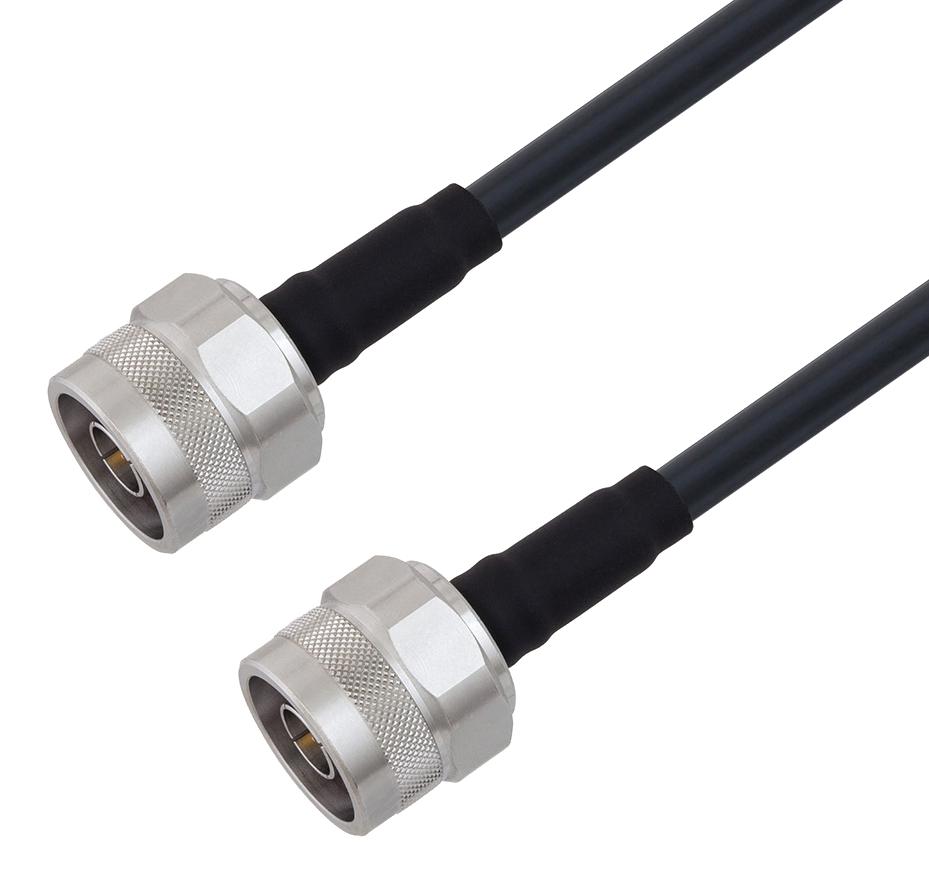

L-COM LCCA30173FT4 RF Cable Assembly
The LCCA30173-FT4 is a high-quality low loss N male to N male coaxial cable assembly featuring 4 feet of LMR-240 coaxial cable with Times Microwave components. Designed for frequencies up to 5.8 GHz, it boasts excellent shielding with over 90 dB effectiveness, making it ideal for RF and communication systems. Its flexible PE jacket ensures durability and ease of use in various installation environments, including land mobile radio, cellular, Wi-Fi, and antenna setups. The assembly provides a reliable, low insertion loss connection for professional communication applications.
L-COM LCCA30173FT4 RF Cable Assembly Specifications:
- Frequency Range: DC to 5.8 GHz
- Impedance: 50 Ohms
- Cable Type: LMR-240
- Cable Length: 4 feet (121.92 cm)
- Outer Diameter: 0.89 in (22.61 mm)
- Inner Conductor: Solid Copper, Gold Plated
- Dielectric: PE (F)
- Shielding: Aluminum Tape and Tinned Copper Braid with > 90 dB Effectiveness
- Velocity of Propagation: 84%
- Insertion Loss: 0.36 dB at 0.25 GHz, 0.52 dB at 0.52 GHz, 0.72 dB at 1.02 GHz
- Group Delay: 1.41 ns/ft (4.62 ns/m)
- Capacitance: 24.2 pF/ft (79.4 pF/m)
- DC Resistance Inner Conductor: 3.89 Ohms/1000 ft (12.76 Ohms/km)
- Operating Temperature Range: -40°C to +85°C
- Jacket Material: PE, Black
- Bend Radius: Minimum 2.5 in (63.5 mm)
- Tensile Strength: 80 lbs (36.29 kg)
- Connector Type: N Male, MIL-STD-348 compliant
- Connector Material: Brass, Gold Plated
- Overall Construction: Double shielded for high RF shielding effectiveness
Buy the INFINITG Series RF Cable: LCCA30173 N Male to N Male 4FT
Purchase the INFINITG Series RF Cable Assembly now and enjoy high-quality, durable coaxial cables designed for maximum performance. With 4 feet of LMR-240 coax and superior shielding, this assembly is ideal for RF communication, cellular, Wi-Fi, and antenna applications. Engineered for frequencies up to 5.8 GHz, it features low insertion loss, flexible PE jacket, and robust construction for reliable connections. Order online today for fast shipping and professional-grade RF connectivity solutions.
Order your INFINITG Series LCCA30173-FT4 N Male to N Male RF cable today and ensure reliable, low-loss connections for your communication systems.
