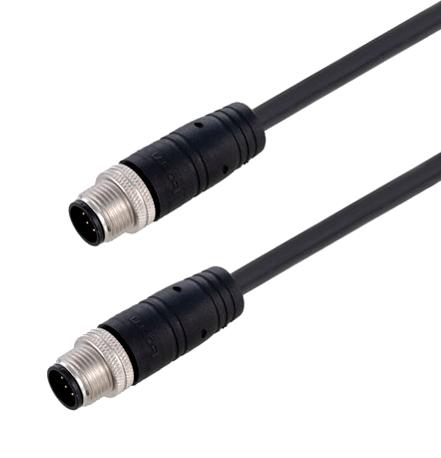

L-COM TRG881P4B10M M12 8-pin industrial cable
This M12 8-pin male-to-male cable assembly features a 24 AWG stranded tinned copper conductors with a polyurethane black jacket, designed for industrial connectivity. The molded thermoplastic polyurethane (TPU) insulator and a brass nickel-plated screw nut ensure durability and reliable electrical contact. Rated for 30 V AC/DC and a maximum current of 2A, it provides ingress protection rating IP67 when mated. The cable’s oil, sunlight, and chemical-resistant jacket ensures suitability in harsh environments, operating efficiently within temperatures from -25°C to +80°C, making it ideal for automation and industrial control applications.
L-COM TRG881P4B10M M12 8-pin industrial cable Specifications:
- Connector Type: M12 8-pin male-to-male
- Conductors: 24 AWG stranded tinned copper
- Jacket Material: Polyurethane, black
- Insulator: Thermoplastic polyurethane (TPU)
- Screw Nut: Brass, nickel-plated
- Electrical Rating: 30 V AC/DC
- Max Current: 2A
- Ingress Protection: IP67 (mated)
- Operating Temperature Range: -25°C to +80°C
- Jacket Resistance: Oil, sunlight, and chemical resistant
- Flame Rating: VW-1
- Cable Length Options: 0.5m, 1.0m, 2.0m, 3.0m, 5.0m, 10m
- Overall Diameter: 0.205 inches (5.20 mm)
Buy the Buy L-COm M12 8P A-CODE Part Number TRG881P4B10M Online
Purchase the L-COm M12 8-pin male-to-male cable assembly online today for superior industrial connectivity. Featuring a durable polyurethane jacket, IP67 protection, and rated for 30V and 2A, this cable ensures reliable performance in harsh environments. Its oil, sunlight, and chemical resistance make it suitable for automation, manufacturing, and control applications operating between -25°C and +80°C. Available in various lengths, it guarantees easy installation and secure connections, optimizing your industrial wiring and control systems with unmatched quality and durability.
Buy L-COm TRG881P4B10M now and experience durable, reliable industrial connectivity with IP67 protection and high-quality construction.
