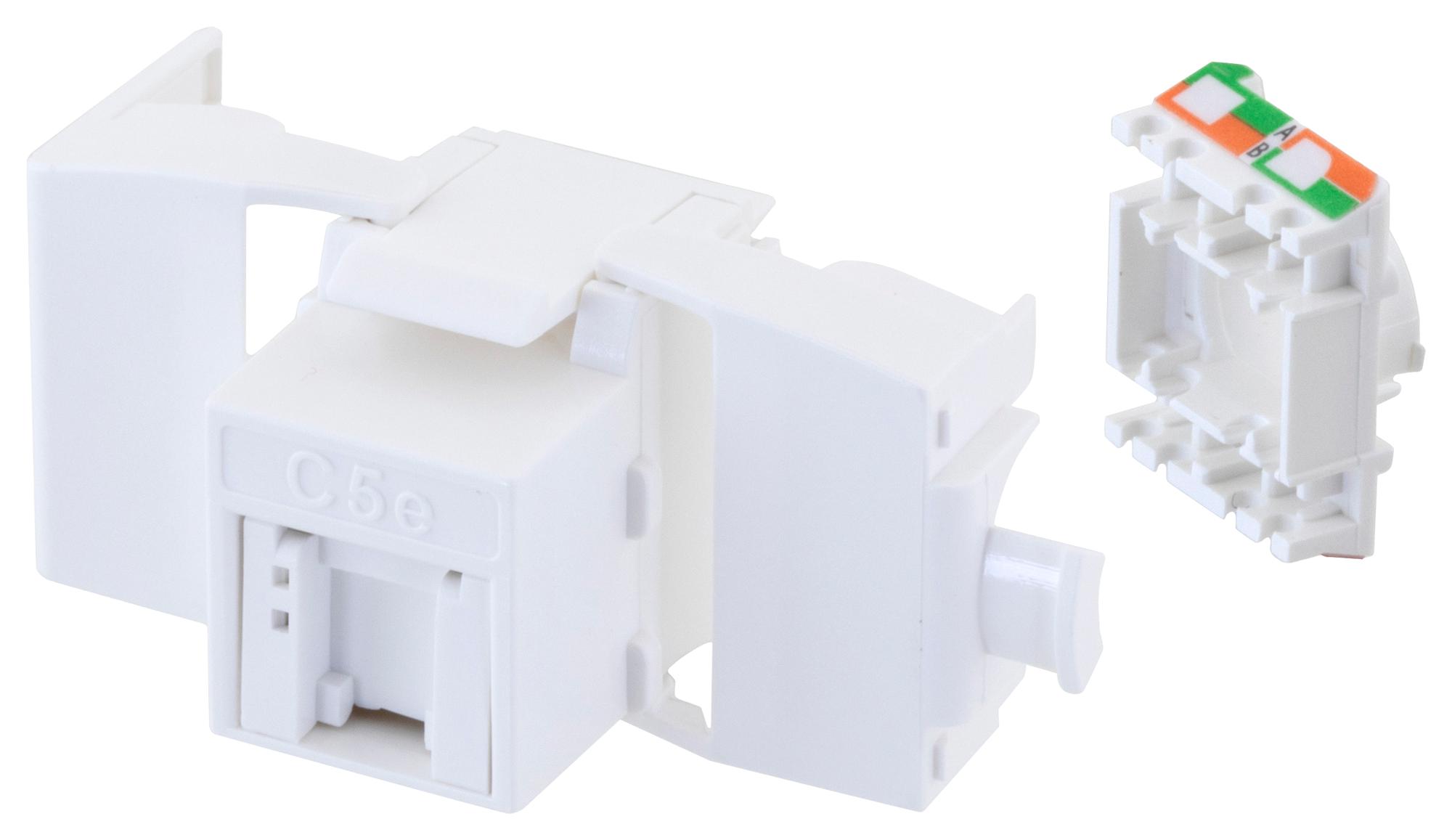

L-COM RJTLC5EPOE Ethernet Keystone Jack
The RJ45 keystone jack with PoE+ support is designed for high-performance Ethernet connections, supporting IEEE 802.3 at Power over Ethernet Plus applications. Made with UL94V-0 PC and ABS plastics, it features phosphor bronze contacts with 50 micro-inch gold plating for reliable connectivity. The jack is rated for 1.5 amps and operates within a temperature range of -10°C to 60°C. Its insertion cycle durability is 750, making it ideal for industrial and commercial networking setups requiring robust and secure connections.
L-COM RJTLC5EPOE Ethernet Keystone Jack Specifications:
- Material: PC, UL94V-0; ABS, UL94V-0
- Contact Material: Phosphor bronze with 50 micro-inch gold plating
- Insertion Life: 750 mating cycles
- Operating Temperature: -10°C to 60°C
- Electrical Rating: 1.5 amps; 1000 V AC dielectric withstand voltage
- Wire Range: Supports 22 to 24 AWG solid conductors
- Connection: RJ45 8P8C plug only
- Certifications: ANSI/TIA-568-C.2, IEC 60603-7, IEEE 802.3at PoE+
- Durability: high-quality impact-resistant plastics and corrosion-resistant metal parts
Buy the L-Com Series RJ45 Ethernet Jack: RJTLC5EPOE
Upgrade your network setup with the high-quality Ethernet Keystone Jack supporting PoE+ from L-Com. Engineered for durability and reliable data transmission, this jack features corrosion-resistant contacts, robust plastics, and high insertion cycle durability, making it ideal for professional installations. Easy to install and compatible with standard RJ45 plugs, it offers excellent performance in demanding industrial and commercial environments. Purchase online now to benefit from fast shipping and comprehensive technical support, ensuring your network remains secure and efficient.
Order your L-Com Series RJTLC5EPOE Ethernet jack today and ensure your network connections are reliable, PoE+ supported, and ready for industrial-grade deployments.
Frequently Asked Questions
Where can I buy L-COM RJTLC5EPOE?
You can click on the BUY or RFQ button to purchase RJTLC5EPOE from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part RJTLC5EPOE?
You can download the RJTLC5EPOE datasheet or visit the L-COM website for support.
Who is the manufacturer of RJTLC5EPOE?
L-COM
