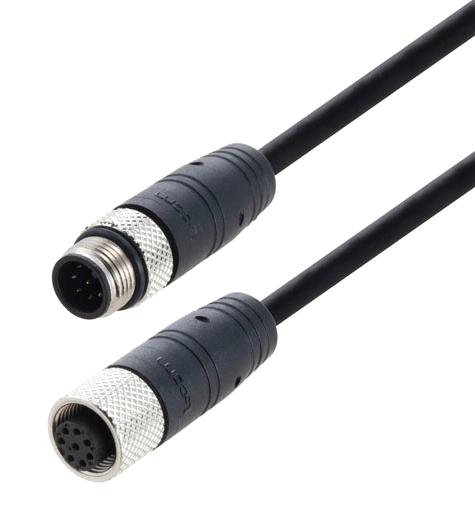

L-COM TRG884P6B2M Shielded M12 Connector
This shielded M12 connector assembly features an 8-position A-coded male/female design with a black PUR jacket. Constructed with thermoplastic polyurethane and PBT+GF insulators, the connector boasts a durable brass shell with nickel plating. It supports a nominal voltage of 30 V AC/DC and a maximum current of 2A, suitable for harsh environments with an IP67 ingress protection rating when mated. Operating across -25°C to +80°C, it resists oil, sunlight, and chemicals, making it ideal for industrial automation and data communication applications. The connector includes gold-plated phosphor bronze contacts and aluminum/polyester foil shielding for reliable signal integrity.
L-COM TRG884P6B2M Shielded M12 Connector Specifications:
- Material: Thermoplastic polyurethane ( hood ), PBT+GF ( insulator ), Brass ( shell/ screw nut )
- Contact Material: Phosphor bronze with 15" minimum gold plating
- Voltage Rating: 30 V AC/DC
- Maximum Current: 2A
- Ingress Protection: IP67 when mated
- Operating Temperature Range: -25°C to +80°C
- Jacket Resistance: Oil, sunlight, and chemical resistant
- Flame Rating: VW-1
- Cable Type: 8 conductors, 26 AWG stranded tinned copper with aluminum/polyester foil shielding and drain wire
- Connector Size: M12, 8 pole, A-coded, shielded
- Jacket Diameter: approximately 0.205 inches (5.20 mm)
- Operating Temperature: -25°C to +80°C
- Dimensions: Length varies with cable length, standard 0.5 to 10 meters options
- Connection Type: Male/Female threaded M12 connector
- Certifications: UL, CE compliant
Buy the L-COM Series M12 Connector: TRG884P6B2M
Order the shielded M12 connector today for your industrial automation projects. Featuring an 8-position design, durable construction, and IP67 protection, this connector ensures reliable performance in harsh environments. The gold-plated contacts and flame-resistant jacket guarantee long-lasting durability and safety. Ideal for data transmission and machinery connections, our M12 connector is easy to install and offers excellent resistance to chemicals, oil, and sunlight. Purchase now to enhance your automation solutions with secure, corrosion-resistant connectivity.
Get L-COM TRG884P6B2M today—built for industrial automation with robust shielding and reliable connections.
Frequently Asked Questions
Where can I buy L-COM TRG884P6B2M?
You can click on the BUY or RFQ button to purchase TRG884P6B2M from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part TRG884P6B2M?
You can download the TRG884P6B2M datasheet or visit the L-COM website for support.
Who is the manufacturer of TRG884P6B2M?
L-COM
