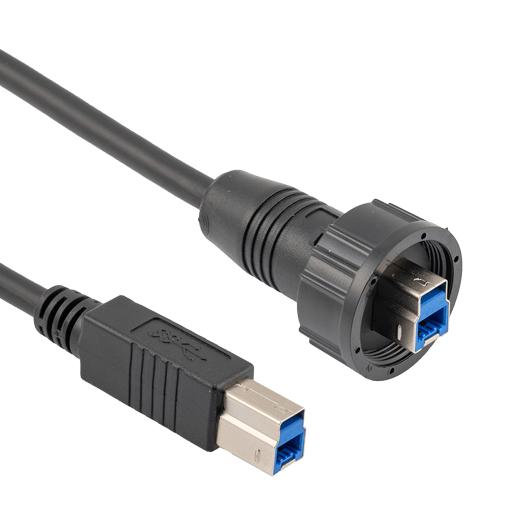

L-COM U3A000171M USB Waterproof Connector
This waterproof USB 3.0 Type B plug features a robust construction with a molded black gasket, UV resistance, and UL94 V-0 flame rating. It is rated IP67 for ingress protection when mated, ensuring high durability in demanding environments. The cable assembly includes a twisted pair design with aluminum/poly foil shield, 24AWG conductors, and a PVC jacket resistant to UV radiation, capable of operating within a temperature range of -20°C to +80°C. The connector contacts are gold-plated for enhanced conductivity and corrosion resistance, making it ideal for industrial and outdoor USB applications.
L-COM U3A000171M USB Waterproof Connector Specifications:
- Connector Type: USB 3.0 Type B plug
- Ingress Protection: IP67 (mated condition)
- Cable Type: UL style 20276, 2 twisted pairs, 30AWG, with foil shield and drain wire
- Outer Jacket Material: PVC, black, UV resistant
- Jacket Diameter: 0.217 inches (5.50 mm)
- Operating Temperature Range: -20°C to +80°C
- Pin Count: 7 pins
- Gold Plating: 30 micro inches on contacts
- Cable Conductors: 24AWG, twisted pairs with aluminum/poly foil shielding
- Cable Shielding: Overall braid shield at 65%
- Connector Shell: Nickel-plated over black plastic
- Cable Length Tolerance: ±1 inch
- Color Coding: Red, White, Black, Blue, Yellow, Purple, Orange, Drain wire
- Certification: Meets USB 3.0 specifications
Buy the Buy L-Connectors USB 3.0 Type B Waterproof Part Number U3A000171M Online
Purchase the L-Connectors USB Waterproof Connector online today for your industrial and outdoor USB needs. This durable waterproof USB 3.0 Type B plug features a UV-resistant PVC jacket, 7-pin configuration, and gold-plated contacts ensuring reliable high-speed data transfer. Its IP67 rated design offers excellent ingress protection when mated, making it suitable for harsh environments. The shielded cable assembly with twisted pairs and overall braid shield provides excellent noise immunity, ensuring secure and efficient connectivity for industrial automation, outdoor surveillance, or outdoor data communication systems.
Get L-Connectors U3A000171M today—designed for waterproof durability and high-speed data transfer.
Frequently Asked Questions
Where can I buy L-COM U3A000171M?
You can click on the BUY or RFQ button to purchase U3A000171M from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part U3A000171M?
You can download the U3A000171M datasheet or visit the L-COM website for support.
Who is the manufacturer of U3A000171M?
L-COM
