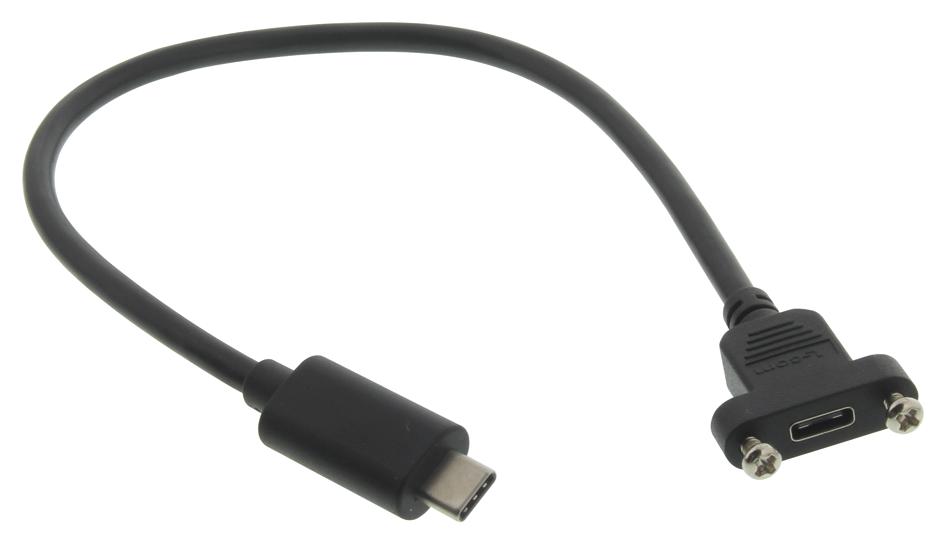

L-COM U3A0005603M USB-C Cable Assembly
This USB-C cable assembly features a 28 AWG stranded tinned copper conductor with a molded PVC black outer jacket. It includes a shield with copper braid and drain wire, gold-plated contacts, and supports USB Type-C to Type-C connections. The assembly measures approximately 0.3 meters with a ±1.18-inch tolerance, designed for high-quality data transfer and power delivery. It complies with RoHS standards, includes mounting hardware, and has passed electrical and continuity testing with DC 300V voltage ratings. Ideal for professional electronics and communication systems requiring durable, high-performance cabling.
L-COM U3A0005603M USB-C Cable Assembly Specifications:
- Cable Type: USB C to USB C
- Conductor: 28 AWG stranded tinned copper
- Shielding: Aluminum/polyester with copper braid and drain wire
- Outer Jacket: PVC black, Ø 0.185 inches (4.70 mm)
- Contacts: Gold-plated
- Length: 0.3 meters (approx. 1.0 foot), tolerance ±1.18 inches
- Voltage Rating: DC 300V, 10ms voltage test
- Insulation Resistance: Min. 10.0 MΩ
- Conductance Resistance: Max. 5.0 Ω
- Mounting Hardware: 2x #4-40 screws included
- Testing: Continuity tested, RoHS compliant
- Certifications: RoHS (EU Directive 2011/65/EU)
Buy the Buy Universal Electronics USB C Type C Part Number U3A0005603M Online
Order the USB-C Cable Assembly featuring high-grade tinned copper conductors, gold-plated contacts, and robust shielding for superior data transfer and power delivery. Measuring 0.3 meters with precise tolerance, it is RoHS compliant and ideal for professional electronics, communication systems, and high-performance devices. Includes mounting hardware, has passed comprehensive electrical tests, and is designed for durability. Purchase online today to ensure your electronic projects benefit from premium quality cabling that guarantees durability, compliance, and high performance in demanding environments.
Buy Universal Electronics USB C Part Number U3A0005603M now and experience unmatched reliability and high-speed performance with durable professional-grade cabling.
Frequently Asked Questions
Where can I buy L-COM U3A0005603M?
You can click on the BUY or RFQ button to purchase U3A0005603M from an authorized L-COM distributor.
How do I troubleshoot issues or seek technical support for part U3A0005603M?
You can download the U3A0005603M datasheet or visit the L-COM website for support.
Who is the manufacturer of U3A0005603M?
L-COM
