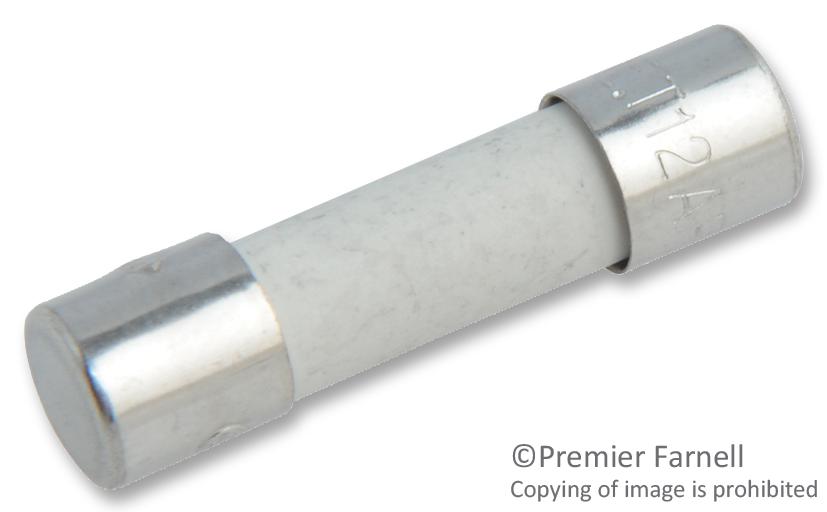

Littelfuse 0215015MXP Time-Lag Fuse
The 215 Series, 5x20 mm time-lag fuse is designed to meet IEC specifications for surge withstand and high breaking capacity, providing reliable protection in appliances and equipment. Made with ceramic body and nickel-plated brass caps, it ensures durability and safety. Suitable for global applications, this fuse is RoHS compliant and lead-free, offering superior performance in circuits requiring time-delayed protection. It undergoes rigorous testing for thermal shock, vibration, humidity, and salt spray, making it ideal for demanding environments or sensitive electronic circuits.
Littelfuse 0215015MXP Time-Lag Fuse Specifications:
- Body: Ceramic
- Cap Material: Nickel-plated Brass
- Leads: Tin-plated Copper
- Dimensions: 5x20 mm
- Operating Temperature: -55°C to +125°C
- Solderability: MIL-STD-202, Method 208
- Thermal Shock Resistance: MIL-STD-202, Method 107
- Vibration Resistance: MIL-STD-202, Method 201
- Humidity Resistance: 240 hours at 95% RH and 40°C
- Salt Spray Resistance: MIL-STD-202, Method 101
- Approvals: IEC 60127-2
- Compliance: RoHS, Lead-Free
Buy the Buy Littelfuse 215 Series Time-Lag Fuse Part Number 0215015MXP Online
Secure your electronic devices with the Littelfuse 215 Series Time-Lag Fuse available online. Designed for surge tolerance and delayed response, it provides dependable overcurrent protection in various appliances and circuits. Made with a ceramic body and nickel-plated brass caps, this RoHS-compliant, lead-free fuse meets IEC standards and undergoes comprehensive testing for thermal shock, vibration, humidity, and salt spray. Easy to install and suitable for demanding environments, order this high-capacity fuse today and enhance your circuit's safety and reliability.
Buy Littelfuse 0215015MXP now and experience unmatched reliability and surge protection for your electronic circuits.
