Littelfuse MITI71015 Miniature Reed Switch
The MITI-7 ultra-miniature reed switch is a highly reliable, hermetically sealed normally open switch with a 7mm x 1.8mm glass envelope. Capable of switching 170VDC at 10W and handling a sensitivity range of 6-20 AT, it offers excellent electrical isolation with a high resistance of 10^10 ohms. Suitable for microcontroller logic level loads, it features a quick operate time of 0.5ms, low contact resistance, and an optional surface mount version. Ideal for industrial controls, security systems, and automation applications, it complies with RoHS standards and offers robust performance in compact designs.
Littelfuse MITI71015 Miniature Reed Switch Specifications:
- Dimensions: 7mm x 1.8mm glass envelope
- Contact Form: SPST-NO
- Contact Rating: 170Vdc, 0.25A, 10W maximum
- Insulation Resistance: 10^10 ohms minimum
- Contact Resistance: Less than 150 milliohms
- Operate Time: 0.5ms max
- Release Time: 0.2ms max
- Shock Resistance: 11ms sine wave, 100G
- Vibration Resistance: 30G at 50-2000 Hz
- Pull-in Range: 6-20 AT
- Sensitivity Range: 6-20 AT
- Materials: Glass body, tin-plated nickel-iron leads
- Temperature Range: -55°C to +125°C
- RoHS Compliant

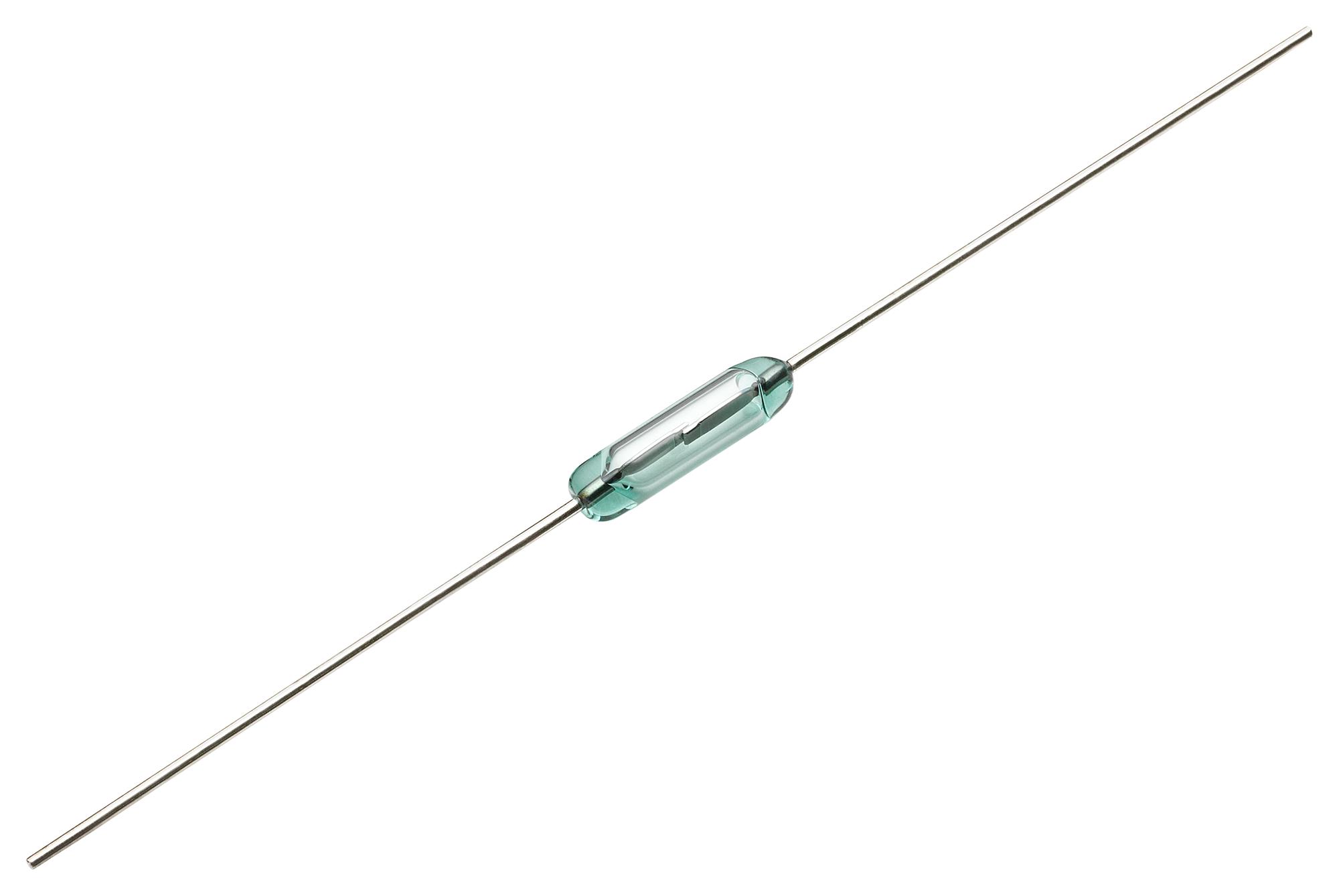

Buy the Littelfuse Series MITI Ultra-Miniature Reed Switch: MITI-7
Order the Littelfuse MITI-7 ultra-miniature reed switch online today and enjoy superior switching capability, fast response times, and reliable operation. Its compact size and hermetically sealed contacts make it ideal for industrial, security, and automation applications. Designed for ease of integration, this switch can handle up to 170Vdc and 10W, with a sensitivity range of 6-20 AT. With RoHS compliance and robust construction, it offers long-lasting performance in demanding environments. Purchase now for optimal microcontroller logic level switching solutions.
Buy Littelfuse MITI-7 ultra-miniature reed switch now and experience unmatched reliability and space-saving performance in your projects.
Frequently Asked Questions
Where can I buy Littelfuse MITI71015?
You can click on the BUY or RFQ button to purchase MITI71015 from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part MITI71015?
You can download the MITI71015 datasheet or visit the Littelfuse website for support.
Who is the manufacturer of MITI71015?
Littelfuse
