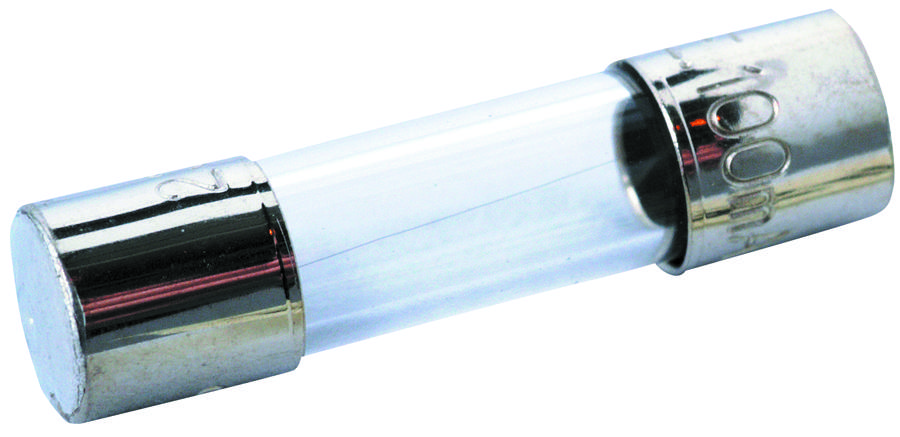

Littelfuse 0219125MXAP Time-Lag Cartridge Fuse
The Littelfuse 0219.125MXAP is a 5x20mm time-lag cartridge fuse designed to meet IEC specifications. This fuse is RoHS compliant and provides reliable overcurrent protection for components and internal circuits in appliance and utilization equipment. It's available in various packaging options, including bulk and tape/reel, and features nickel-plated brass caps and tin-plated copper leads. The fuse's time-lag characteristics allow for temporary overload conditions without interruption, making it suitable for applications with inrush currents.
Littelfuse 0219125MXAP Time-Lag Cartridge Fuse Specifications:
- Series: 219XA
- Size: 5x20mm
- Fuse Type: Time-Lag
- IEC Specification: Compliant
- RoHS Compliant: Yes
- Body Material: Glass
- Cap Material: Nickel Plated Brass
- Lead Material: Tin Plated Copper
- Operating Temperature: -55°C to +125°C
- Agency Approvals: NBK220604-E10480A, NBK120802-E10480C, NBK220604-E10480B, NBK120802-E10480D, 2004010207110266, 2003010207079982, E10480, 29862, 1402844, 40016080, KM41462
- Ampere Range: 0.040A – 6.3A
- Interrupting Rating: 100A@350Vac (for 4A-6.3A)
- Salt Spray: MIL-STD-202 Method 101, Test Condition B
- Shock: MIL-STD-202, Method 107, Test Condition B
- Vibration: MIL-STD-202, Method 201
- Humidity: High RH (95%) and elevated temperature (40°C) for 240 hours
- Solderability: MIL-STD-202, Method 208, Test Condition A
- Terminal Strength: MIL-STD-202, Method 211, Test Condition A
- Packaging Options: Bulk (1000 pcs/pkg), Reel and Tape (1000 pcs/reel)
Buy the 0219.125MXAP Littelfuse Time-Lag Cartridge Fuse | myMectronic
Purchase the Littelfuse 0219.125MXAP fuse securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy Littelfuse 0219125MXAP?
You can click on the BUY or RFQ button to purchase 0219125MXAP from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part 0219125MXAP?
You can download the 0219125MXAP datasheet or visit the Littelfuse website for support.
Who is the manufacturer of 0219125MXAP?
Littelfuse
