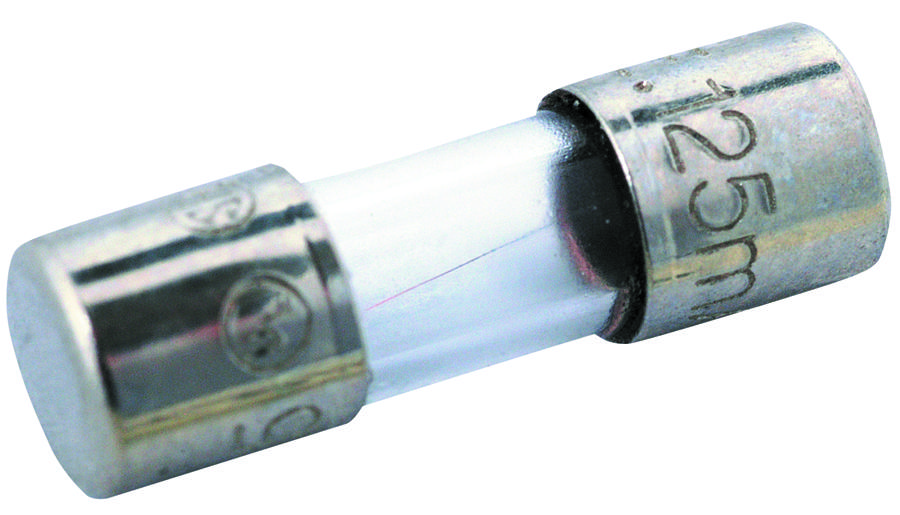

Littelfuse 0225015HXP Fast Acting Fuse
The LITTELFUSE 224/225 Series Fast-Acting Fuses are designed for reliable protection in appliance and utilization equipment. Available in both cartridge and axial lead forms, these fuses provide a compact solution while maintaining performance comparable to 3AG fuses. They are RoHS compliant and meet various industry standards, making them suitable for a wide range of applications requiring individual component or circuit protection. The fuses feature a nickel-plated brass cap, glass body, and tin-plated copper leads, ensuring durability and reliable performance under various operating conditions.
Littelfuse 0225015HXP Fast Acting Fuse Specifications:
- Agency Approvals: E10480 (0.375A - 3.5A), E10480 (4A - 10A), 29862 (0.375A - 10A), NBK200405-E10480A/B/C/D (1A - 3.5A), NBK110512-E10480A/B (4A - 5A), NBK210405-E10480E/F (6A - 10A)
- Ampere Range: 0.375A - 10A
- Body Material: Glass
- Cap Material: Nickel-plated brass
- Lead Material: Tin-plated Copper
- Terminal Strength: MIL-STD-202, Method 211, Test Condition A
- Solderability: MIL-STD-202 Method 208
- Product Marking: Cap1: Brand logo, current and voltage ratings; Cap2: Series and agency approval marks
- Operating Temperature: –55ºC to 125ºC
- Thermal Shock: MIL-STD-202, Method 107, Test Condition B
- Vibration: MIL-STD-202, Method 201
- Humidity: MIL-STD-202, Method 103, Test Condition A
- Salt Spray: MIL-STD-202, Method 101, Test Condition B
- Interrupting Rating: 10A with 500A @ 125 Vdc
- Opening Time (100% Rating): 4 hours (minimum)
- Opening Time (135% Rating): 1 hour (maximum)
- Opening Time (200% Rating): 1 second (maximum)
- Voltage Rating: 250V
- Nominal Ampere: 0.375A - 10A
- Cold Resistance: 0.0240 Ohms (4A)
- I[2]: Varies by Ampere Rating (see datasheet)
- Melting Time: Varies by Ampere Rating (see datasheet)
Buy the 022501.5HXP LITTELFUSE Fast Acting Fuse | myMectronic
Purchase the LITTELFUSE 022501.5HXP fuse securely and efficiently for your industrial needs.
Buy Now
Frequently Asked Questions
Where can I buy Littelfuse 0225015HXP?
You can click on the BUY or RFQ button to purchase 0225015HXP from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part 0225015HXP?
You can download the 0225015HXP datasheet or visit the Littelfuse website for support.
Who is the manufacturer of 0225015HXP?
Littelfuse
