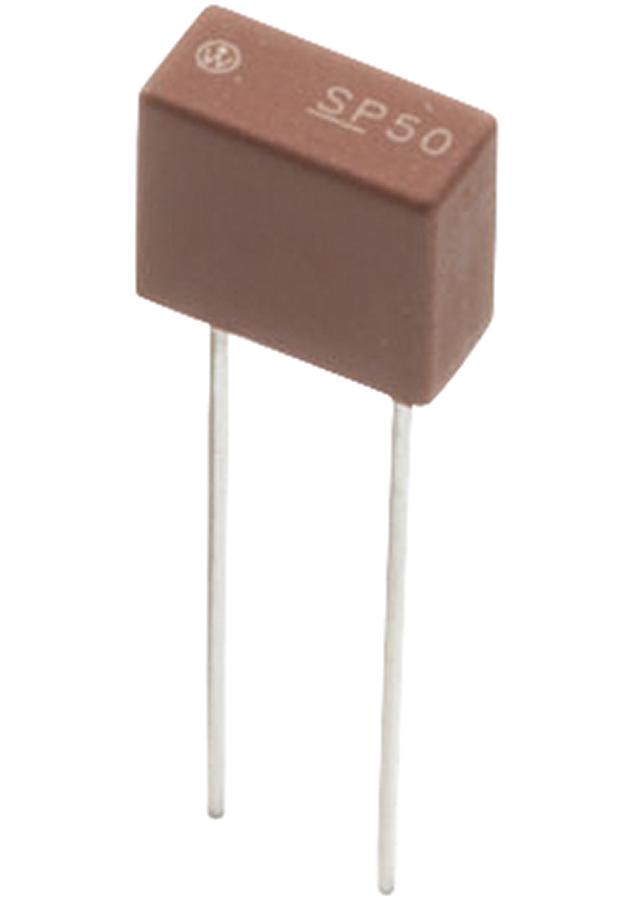

Littelfuse 39605000440 Radial Lead Fuses
The 396 Series TE5® time-lag radial lead fuses are designed for overcurrent protection in electronic circuits, rated at 125V. They feature halogen-free, lead-free construction, UL 248-14 compliance, and are vibration and shock resistant. Available in various current ratings from 0.05A to 6.3A, they offer low internal resistance, rapid dissipation, and easy soldering options including direct solder or plug-in versions. These fuses ensure reliability in battery chargers, power supplies, consumer electronics, and industrial controllers, providing safe and efficient circuit protection.
Littelfuse 39605000440 Radial Lead Fuses Specifications:
- Voltage Rating: 125V
- Current Ratings: 0.05A to 6.3A
- Internal Resistance: As low as 0.0087 Ohms at 6.3A
- Breaking Capacity: 200% max. for 60 seconds
- Material: Halogen-free, lead-free thermoplastic base and copper, tin-plated pins
- Operating Temperature: -40°C to +85°C (consider re-rating)
- Soldering: Max. 260°C for 2-5 seconds, suitable for wave soldering, not recommended for IR or convection reflow
- Electrical Characteristics: Max dissipation 570mW at 6.3A, various resistance and dissipation levels depending on current rating
- Mechanical: Lead pull strength 10N, IEC compliant, 18.8mm long or 4.3mm short leads options
- Packaging: Tape and Ammopack, bulk supplies available, 1400 pcs per carton
Buy the Littelfuse Series TE5 Radial Lead Fuses: 39605000440
Purchase Littelfuse Radial Lead Fuses online to ensure reliable circuit protection for your electronic applications. These UL 248-14 compliant fuses feature halogen-free and lead-free construction, making them environmentally friendly. Available from 0.05A to 6.3A ratings, they are designed for easy soldering, including direct and plug-in options. Their vibration and shock-resistant design make them suitable for battery chargers, power supplies, consumer electronics, and industrial controls. Ensure safety and longevity by choosing high-quality fuses for your circuits today.
Get Littelfuse 39605000440 today—built for precision and long-lasting durability in electronic circuit protection.
