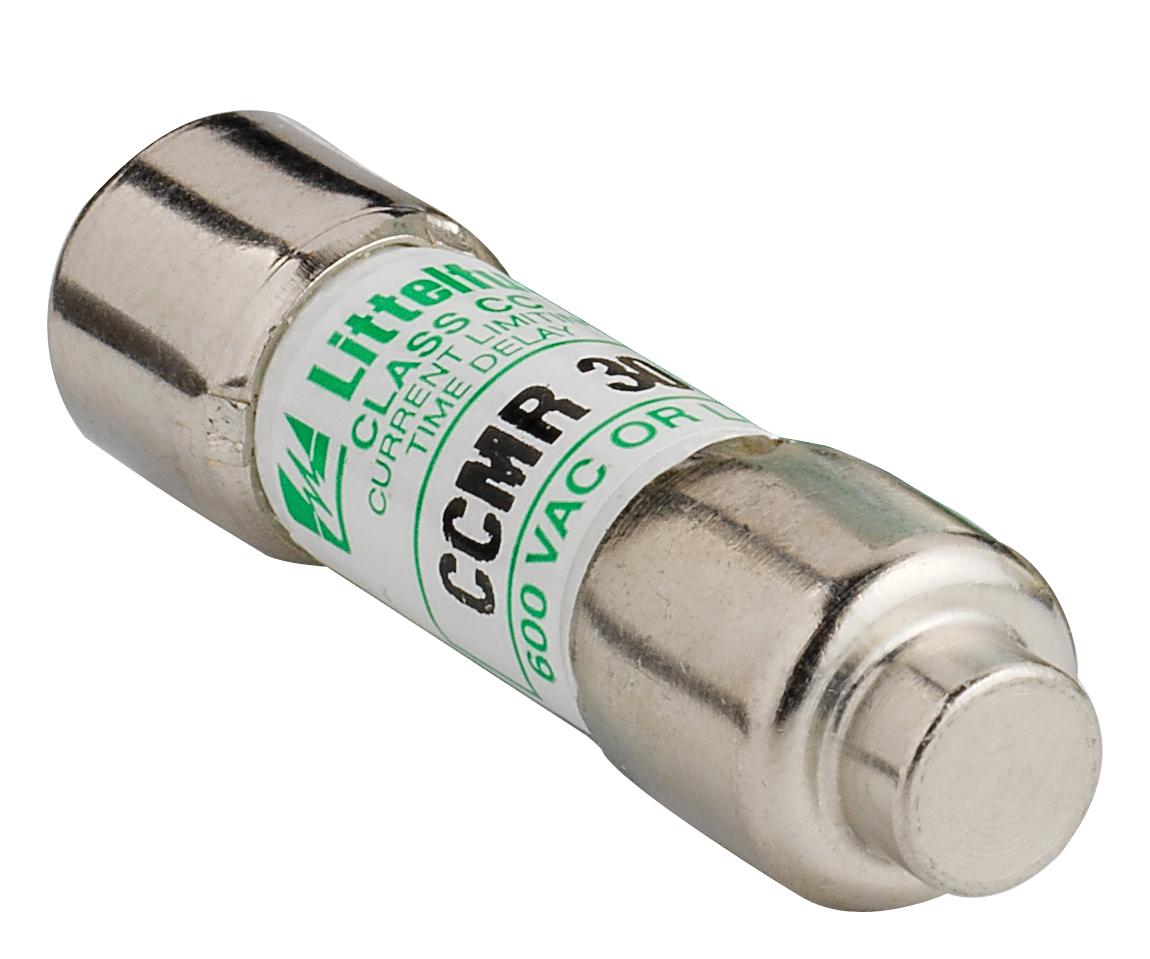

Littelfuse CCMR030TXP Motor Protection Fuse
The CCMR series provides space-saving motor protection up to 40 horsepower, designed to withstand high starting currents with rated interrupting capacities of 200kA AC and 20kA DC. These UL-listed, Class CC/CD fuses are ideal for branch circuit protection, offering extremely current-limiting and high-performance features. Rated for voltages up to 600V AC and 250V DC, they are perfect for motor applications in various environments. The series combines compact size with reliable safety ratings, making them suitable for demanding industrial power distribution needs.
Littelfuse CCMR030TXP Motor Protection Fuse Specifications:
- Voltage Rating AC: 600V
- Voltage Rating DC: 250V
- Amperage Ratings: 2/60A to 60A
- Interrupting Rating AC: 200kA rms symmetrical
- Interrupting Rating DC: 20kA
- UL Listed: Class CC and Class CD
- CSA Certified
- RoHS Compliant (except 35-60A)
- Environmental: N/A
- Country of Origin: Mexico
Buy the Littelfuse Series CCMR: Fuses for Motor Protection CCMR030TXP
Protect your motor circuits with the high-performance Littelfuse CCMR series fuses, rated up to 600V AC and 250V DC. These UL-listed, space-saving fuses feature high interrupting capacities of 200kA AC and 20kA DC, ideal for safeguarding motors up to 40 HP. Designed for demanding industrial environments, they offer reliable current limiting and fast response to overloads. Available in a variety of amperages from 2/60A to 60A, these fuses are perfect for branch circuit protection. Buy online today for dependable motor circuit safety and compliance with industry standards.
Order your Littelfuse Series CCMR motor protection fuse today and ensure reliable, space-efficient circuit protection for your industrial motors.
Frequently Asked Questions
Where can I buy Littelfuse CCMR030TXP?
You can click on the BUY or RFQ button to purchase CCMR030TXP from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part CCMR030TXP?
You can download the CCMR030TXP datasheet or visit the Littelfuse website for support.
Who is the manufacturer of CCMR030TXP?
Littelfuse
