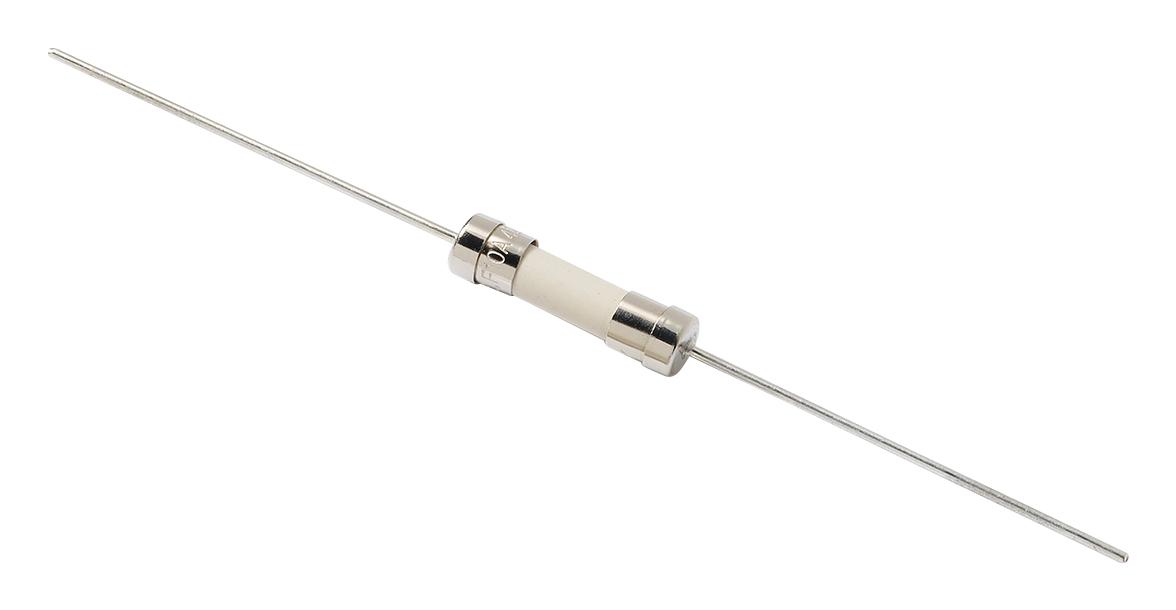

Littelfuse 0487008MXEP High-Voltage Safety Fuse
The 487 Series is a 5x20mm fast-acting ceramic fuse rated at 420VAC and 420VDC, designed for high-energy applications such as power supplies, inverters, and data centers. It offers fast trip times from 0.01 to 1 second, with high current ratings up to 390A. Constructed with a ceramic body, nickel-plated brass caps, and tin-plated copper leads, this fuse ensures reliable overload protection in safety-critical systems. Suitable for high-voltage DC and AC applications, it features RoHS compliance and lead-free manufacturing, making it ideal for industrial and telecom use.
Littelfuse 0487008MXEP High-Voltage Safety Fuse Specifications:
- Body Material: Ceramic
- Cap Material: Nickel-plated Brass
- Leads: Tin-plated Copper
- Rated Voltage: 420VAC / 420VDC
- Current Ratings: 8A to 20A
- Breaking Capacity: 750A at 250VAC, 300A at 420VAC/DC
- Trip Time: 0.01 to 1 sec.
- Operating Temperature: -55°C to +125°C
- Certifications: RoHS compliant, Lead-free
- Soldering Temperature: Max 260°C for 2-5 sec.
- Preheat Temperature: 100°C to 150°C for 60-180 sec.
Buy the Littelfuse 487 Series U+2013 Reliable Fuses for Industrial Applications
Discover the reliable high-energy protection of the Littelfuse 487 Series fuse, designed for industrial power supplies, inverters, and data center systems. With a 5x20mm ceramic body, rated at 420VAC/DC, high current capacity, and RoHS compliance, this fuse provides rapid response times from 0.01 to 1 second to prevent damage during faults. Its robust construction includes nickel-plated brass caps and tin-plated copper leads, ensuring durability and dependable overload protection in safety-critical applications. Order online today for quality and safety in your power installations.
Order your Littelfuse Series 487 fuse today and ensure dependable short-circuit protection for your high-voltage power systems and safety-critical applications.
Frequently Asked Questions
Where can I buy Littelfuse 0487008MXEP?
You can click on the BUY or RFQ button to purchase 0487008MXEP from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part 0487008MXEP?
You can download the 0487008MXEP datasheet or visit the Littelfuse website for support.
Who is the manufacturer of 0487008MXEP?
Littelfuse
