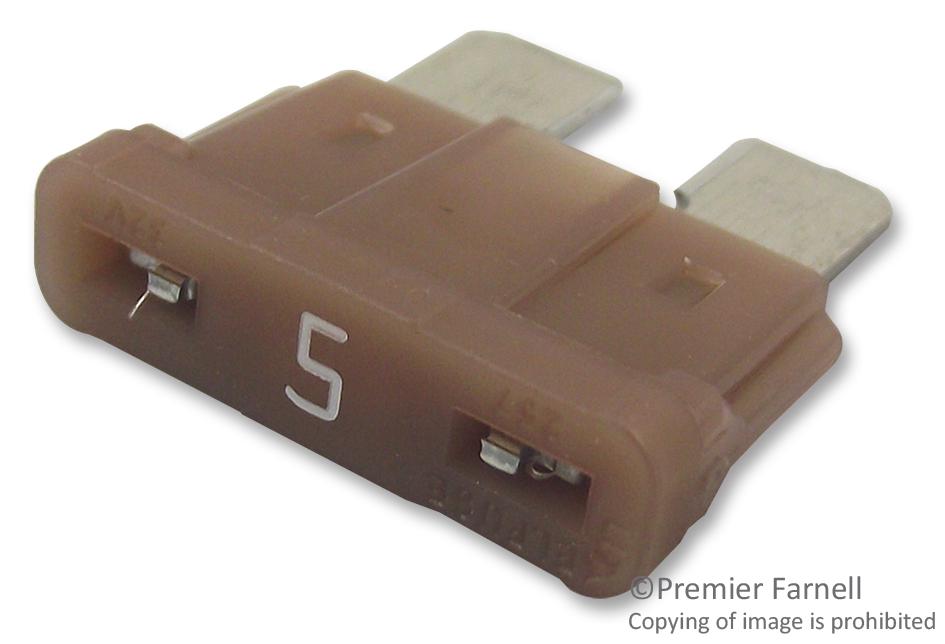

Littelfuse 0287005PXCN Blade Fuse
The Littelfuse ATOF blade fuse is a widely adopted circuit protection standard in the automotive industry, originally developed for both foreign and domestic automobiles and trucks. Its readily identifiable design and ease of replacement make it a convenient choice for a variety of low-voltage electronic applications. Compliant with ISO 8820 and UL 248, this fuse offers robust protection and is available in various current ratings to suit different circuit requirements. The fuse's terminals are Sn plated for enhanced durability and performance.
Littelfuse 0287005PXCN Blade Fuse Specifications:
- Complies with: ISO 8820, UL 248
- Voltage Rating: 32 VDC
- Interrupting Rating: 1000A @ 32 VDC
- Operating Temperature Range: -40˚C to +105˚C
- Terminals: Sn plated
- Package Size: 2000
- Current Rating: 5 A
- Housing Color: N/A
- Typ. Voltage Drop: 128 mV
- Cold Resistance: 17.85 mΩ
- I2t: 26 A²s
