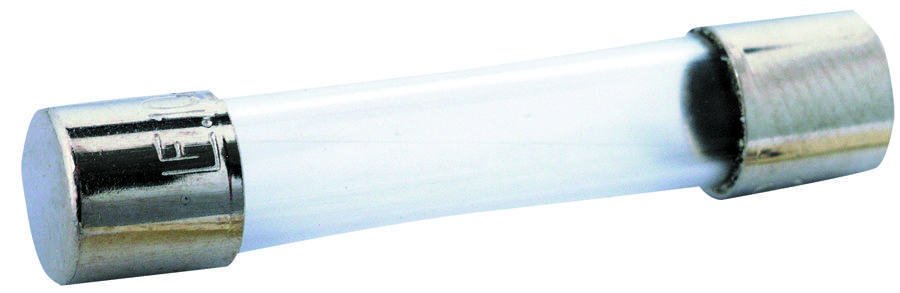

Littelfuse 0312006HXP Fast Acting Fuse
The Littelfuse 312/318 Series Fast-Acting Fuse is designed to provide reliable circuit protection for various applications, including appliances and utilization equipment. Available in both cartridge and axial lead formats, this fuse offers a cost-effective solution while maintaining dependable performance. It is RoHS compliant and adheres to UL standards, ensuring safety and environmental responsibility. The fuse's fast-acting characteristics make it ideal for protecting sensitive components and internal circuits from overcurrent conditions.
Littelfuse 0312006HXP Fast Acting Fuse Specifications:
- Agency Approvals: E10480, 29862, NBK040205-E10480B/F, NBK040205-E10480D/H, SU05001-6008, SU05001-5005, SU05001-5006
- Ampere Range: 0.062A - 30A (312 Series), 0.062A - 10A (318 Series)
- Opening Time: 4 hours (minimum at 100% rating), 1 hour (maximum at 135% rating), 5 seconds (maximum at 0.062A - 10A), 10 seconds (maximum at 200% rating), 20 seconds (maximum at 35A)
- Body Material: Glass
- Cap Material: Nickel-plated brass
- Lead Material: Tin-plated Copper
- Operating Temperature: -55°C to +125°C
- Terminal Strength: MIL-STD-202, Method 211, Test Condition A
- Solderability: MIL-STD-202 method 208
- Product Marking: Brand logo, current and voltage ratings (Cap1), Series and agency approval (Cap2)
- Salt Spray: MIL-STD-202, Method 101, Test Condition B
- Dimensions: Axial Lead Diameter: 0.81±0.05 (.032”), Standard Axial Lead Length: 39.68 (1.56”), Short Lead Option: 12.70 (0.50”), Cartridge Length: 6.35±0.3 (.25”), Axial Lead Length: 6.985±0.3 (.275”), Body Length: 31.75±1.12 (1.25”), Axial Lead Length: 32.72±1.12 (1.288”)
Buy the 0312006.HXP LITTELFUSE Fast Acting Fuse | myMectronic
Purchase the Littelfuse 0312006.HXP fuse securely and efficiently to ensure reliable circuit protection for your applications.
Buy Now
Frequently Asked Questions
Where can I buy Littelfuse 0312006HXP?
You can click on the BUY or RFQ button to purchase 0312006HXP from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part 0312006HXP?
You can download the 0312006HXP datasheet or visit the Littelfuse website for support.
Who is the manufacturer of 0312006HXP?
Littelfuse
