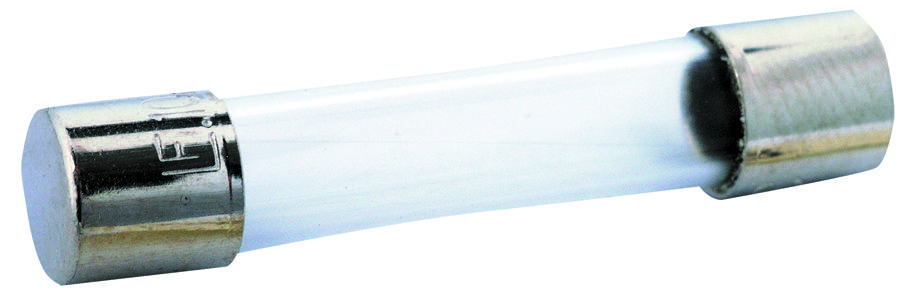

Littelfuse 0312200HXP Fast Acting Fuse
The Littelfuse 312/318 Series Fast-Acting Fuse is designed to offer reliable performance and cost-effective circuit protection for a wide range of applications. Available in both cartridge and axial lead formats, this fuse is suitable for use in appliances, utilization equipment, and other applications requiring individual component or internal circuit protection. It is RoHS compliant and meets various industry standards, ensuring quality and safety.
Littelfuse 0312200HXP Fast Acting Fuse Specifications:
- Agency Approvals: E10480, 29862, NBK040205-E10480B/F, NBK040205-E10480D/H, SU05001-6008, SU05001-5005, SU05001-5006
- Ampere Range: 0.062A - 30A (312 Series), 0.062A - 10A (318 Series)
- Interrupting Rating: 10KA @ 125Vac, 200A @ 250Vac, 300A @ 32 Vac
- Operating Temperature: -55ºC to +125ºC
- Body Material: Glass
- Cap Material: Nickel-plated brass
- Lead Material: Tin-plated Copper
- Terminal Strength: MIL-STD-202, Method 211, Test Condition A
- Solderability: MIL-STD-202 method 208
- Salt Spray: MIL-STD-202, Method 101, Test Condition B
- Dimensions (Cartridge): 6.35±0.3 (.25")
- Dimensions (Axial Leaded): 6.985±0.3 (.275")
- Length (Cartridge): 31.75±1.12 (1.25")
- Length (Axial Leaded): 32.72±1.12 (1.288")
- Axial Lead Diameter: 0.81±0.05 (.032")
- Axial Lead Length (Standard): 39.68 (1.56")
- Axial Lead Length (Short): 12.70 (0.50")
Buy the 0312.200HXP LITTELFUSE Fast Acting Fuse | myMectronic
Purchase the Littelfuse 0312.200HXP fuse securely online and ensure reliable circuit protection for your applications.
Buy Now
Frequently Asked Questions
Where can I buy Littelfuse 0312200HXP?
You can click on the BUY or RFQ button to purchase 0312200HXP from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part 0312200HXP?
You can download the 0312200HXP datasheet or visit the Littelfuse website for support.
Who is the manufacturer of 0312200HXP?
Littelfuse
