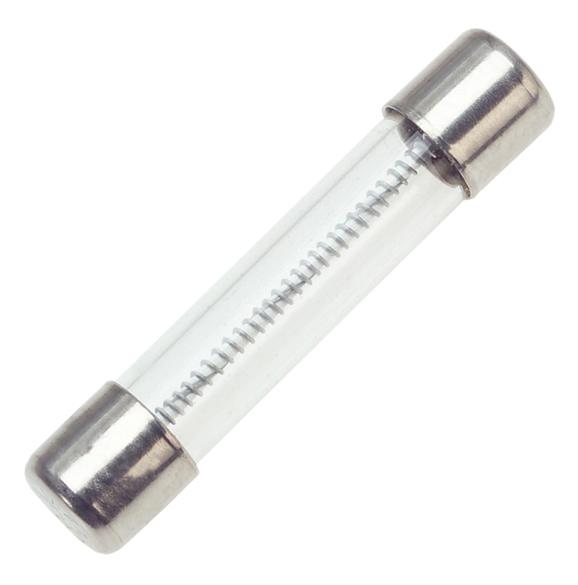

Littelfuse 0313007HXP Slo-Blo Fuse
The Littelfuse 313/315 Slo-Blo fuse is designed to meet a broad range of application requirements while offering reliable performance and cost-effective circuit protection. Its unique design instantly identifies itself upon opening through discoloration of the glass body, simplifying troubleshooting and saving time. This fuse provides the same quality performance characteristics as the standard 3AG Slo-Blo Fuse design and is available in cartridge and axial lead formats with various forming dimensions. It is suitable for use as supplementary protection in appliance or utilization equipment to provide individual protection for components or internal circuits.
Littelfuse 0313007HXP Slo-Blo Fuse Specifications:
- Agency Approvals: E10480 (0.010A - 10A/15A), 29862 (0.010A - 10A/15A), E10480 (10A - 30A), NBK040205-E10480B/F (1-5A), NBK040205-E10480D/H (6.25-10A/15A), SU05001-6004 (2.25-2.5A), SU05001-5007 (2.8A - 3.2A), SU05001-5008 (4A - 6.3A), SU05001-5009 (7A-8A)
- Body Material: Glass
- Cap Material: Nickel-plated brass
- Lead Material: Tin-plated Copper
- Operating Temperature: -55°C to +125°C
- Thermal Shock: MIL-STD-202, Method 107, Test Condition B (5 cycles -65°C to +125°C)
- Vibration: MIL-STD-202, Method 201
- Terminal Strength: MIL-STD-202, Method 211, Test Condition A
- Solderability: MIL-STD-202 method 208
- Interrupting Rating: 10mA – 30A (4 hours, Minimum), 10mA – 30A (1 hour, Maximum), 10mA – 15A (5 sec, Min, 30 sec, Max), 20A – 30A (5 sec, Min, 60 sec Max)
- Voltage Rating: 250V
- Datasheet Resources: Available
- Samples: Available
- Lead-Free: Yes
- Forming Dimensions: Various
- Applications: Supplementary protection in appliance or utilization equipment
