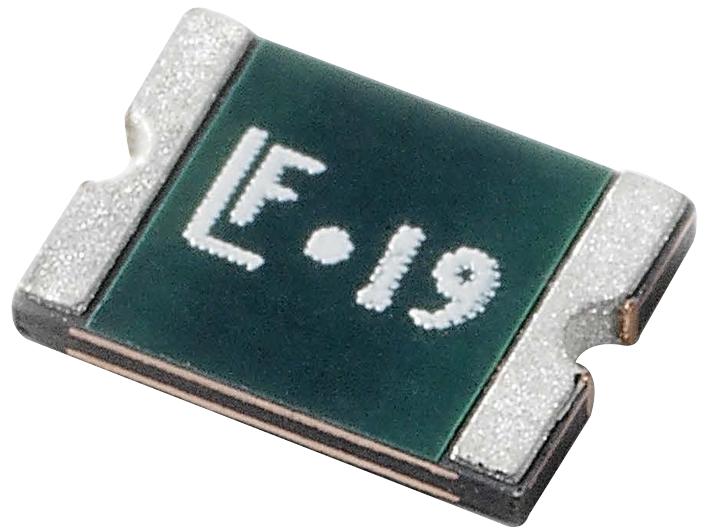

Littelfuse 0402L010SLKR Resettable PTC Fuse

Littelfuse 0402L010SLKR Resettable PTC Fuse Specifications:

• Agency Approvals: E183209, R50119118
• Description: Provides surface mount overcurrent protection for applications where space is at a premium and resettable protection is desired.
• Features: ['Low-profile', 'RoHS compliant, lead-free and halogen free', 'Compatible with high temperature solders', 'Fast response to fault currents', 'Smallest size']
• Applications: ['USB peripherals', 'PDAs / digital cameras', 'Game console port protection', 'Disk drives', 'CD-ROMs', 'Tablet and Notebook PCs']
• I hold: Hold current: maximum current device will pass without tripping in 20°C still air.
• I trip: Trip current: minimum current at which the device will trip in 20°C still air.
• V max: Maximum voltage device can withstand without damage at rated current (I max)
• I max: Maximum fault current device can withstand without damage at rated voltage (Vmax)
• P d: Power dissipated from device when in the tripped state at 20°C still air.
• R min: Minimum resistance of device in initial (un-soldered) state.
• R 1max: Maximum resistance of device at 20°C measured one hour after tripping or reflow soldering of 260°C for 20 sec.
• Terminal Material: Solder-Plated Copper (Matte Tin)
• Lead Solderability: Meets ANSI/J-STD-002, Category C
• Operating/Storage Temperature: -40°C to +85°C
• Maximum Device Surface Temperature: 125°C
• Temperature in Tripped State: MIL–STD–202, Method 215
• Solvent Resistance: No change
• Vibration: No change
• Moisture Sensitivity Level: Level 1, J–STD–020
