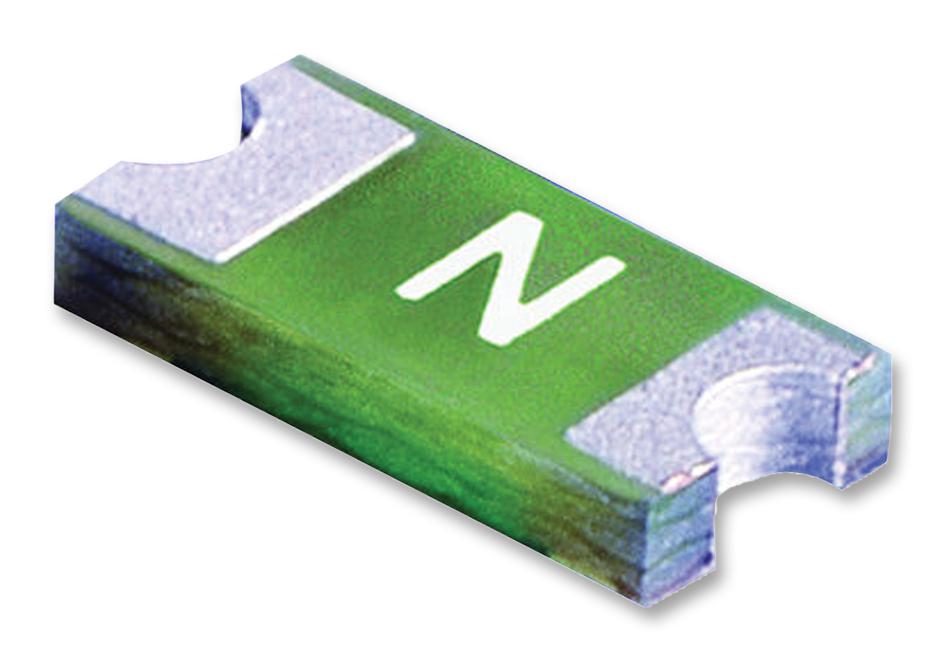

Littelfuse 0466005NR Fast-Acting Surface Mount Fuse
The Littelfuse 466 Series Fast-Acting Surface Mount Fuse (SMF) is a compact (1206 size) thin-film device engineered for secondary circuit protection in applications where space is limited, such as portable electronic devices. This series is 100% lead-free and compliant with the RoHS directive. Featuring an advanced high-temperature substrate and conformal coating, the 466 Series provides reliable performance and resistance to harsh environments. Its sensitive characteristics and superior inrush withstand capabilities make it a versatile choice for various electronic applications. The fuse is designed for compatibility with automated assembly processes and offers clear amperage rating identification through a marking code system.
Littelfuse 0466005NR Fast-Acting Surface Mount Fuse Specifications:
- Operating Temperature: –55°C to 90°C
- Insulation Resistance: Greater than 10,000 ohms
- Resistance to Soldering Heat: MIL-STD-202G, Method 210F, Condition D
- Agency Approvals: E10480, LR29862
- Ampere Range: 125MA - 5A
- Interrupting Rating: Varies by Ampere Rating (See Electrical Specifications Table)
- Nominal Voltage Rating: 125V AC/DC
- Power Dissipation: Varies by Ampere Rating (See Electrical Specifications Table)
- Thermal Shock: Withstands 5 cycles of –55°C to 125°C
- Humidity: MIL-STD-202F, Method 103B, Condition D
- Body Material: Advanced High Temperature Substrate
- Termination Material: 100% Tin over Nickel over Copper
- Element Cover Coat: Conformal Coating
- Marking Code: Varies with Amperage Rating (See Part Marking System Table)
Buy the 0466005.NR LITTELFUSE Fast-Acting Surface Mount Fuse | myMectronic
Purchase the LITTELFUSE 0466005.NR Fast-Acting Surface Mount Fuse securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy Littelfuse 0466005NR?
You can click on the BUY or RFQ button to purchase 0466005NR from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part 0466005NR?
You can download the 0466005NR datasheet or visit the Littelfuse website for support.
Who is the manufacturer of 0466005NR?
Littelfuse
