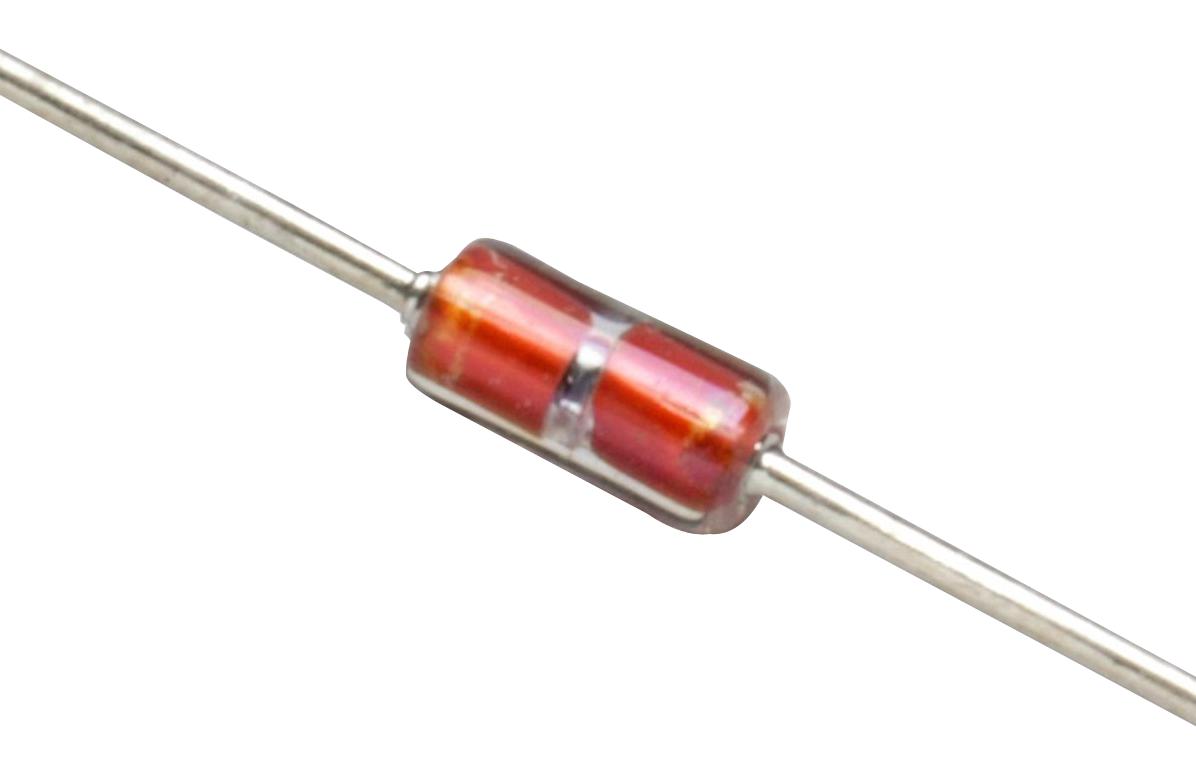

Littelfuse 104JG1F Glass Encapsulated Thermistor
High-precision glass encapsulated thermistor designed for accurate temperature sensing in industrial and electronic applications. Featuring a resistance of 100,000 ohms with a temperature range from -55°C to +300°C, this thermistor offers excellent stability and long-term reliability even under severe environmental conditions. Its hermetically sealed glass package ensures high voltage insulation, making it ideal for temperature measurement, control systems, and safety applications. The device's axial lead configuration facilitates easy integration with automatic insertion equipment, providing durability and consistent performance.
Littelfuse 104JG1F Glass Encapsulated Thermistor Specifications:
- Resistance: 100,000 ohms
- Temperature Range: -55°C to +300°C
- Resistance Tolerance: ±1%, ±2%, or ±5% (upon request)
- Package: Hermetically sealed glass in DO-35 diode style
- Lead Type: Tinned Copper-Clad Steel (CCS) wire, 0.020" diameter, 1.0" length
- Maximum Temperature Capability: +300°C
- Voltage Insulation: High voltage insulation provided by glass package
- Dimensions: Length 1.0 inch, Lead diameter 0.020 inch, Max diameter 0.075 inch
- Application: Suitable for temperature measurement, control systems, environments with severe thermal or environmental conditions.
- Features: Stable long-term reliability, hermetic sealing, axial lead configuration, easy soldering or welding, cost-effective
Buy the Littelfuse 104JG1F – Reliable Temperature Sensor for Industrial Applications
Order the Littelfuse 104JG1F glass encapsulated thermistor today and improve your temperature sensing accuracy. Equipped with a resistance of 100,000 ohms and a temperature range from -55°C to +300°C, this thermistor ensures precise and stable performance in challenging environments. Its hermetic glass package provides excellent insulation and long-term stability, making it ideal for industrial, electronic, and safety applications. Easy to incorporate with automatic insertion equipment, this component guarantees durability, reliability, and cost efficiency for your critical systems.
Buy Littelfuse 104JG1F now and experience unmatched reliability and performance in temperature measurement and control solutions.
Frequently Asked Questions
Where can I buy Littelfuse 104JG1F?
You can click on the BUY or RFQ button to purchase 104JG1F from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part 104JG1F?
You can download the 104JG1F datasheet or visit the Littelfuse website for support.
Who is the manufacturer of 104JG1F?
Littelfuse
