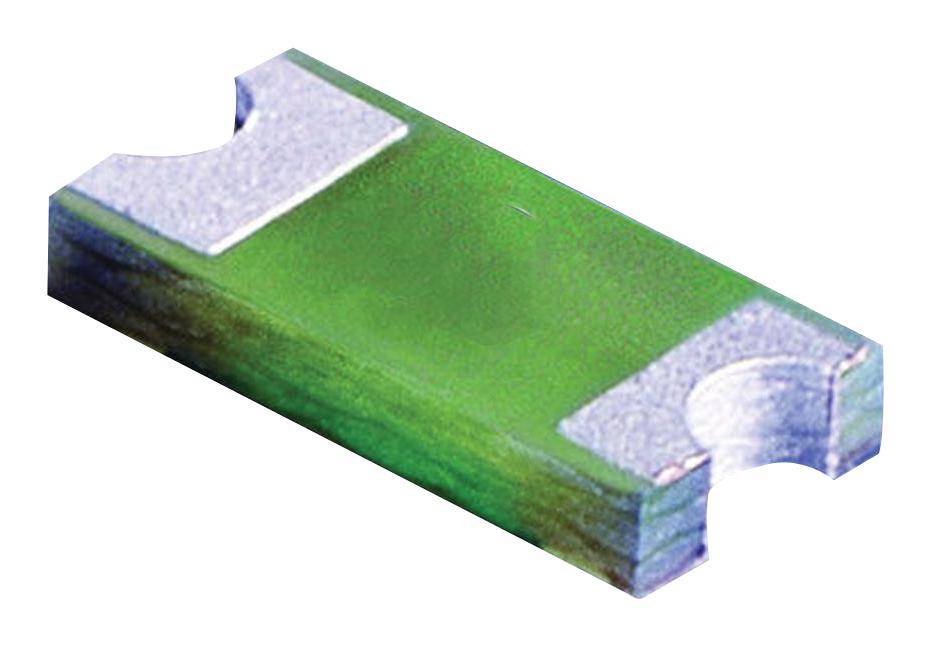

Littelfuse 0466375NRHF Fast-Acting Fuse
The Littelfuse 466 Series Fast-Acting Surface Mount Fuse (SMF) is a compact, thin-film device specifically engineered for secondary circuit protection in applications where space is limited, such as hand-held portable electronic devices. This series is 100% lead-free and meets RoHS requirements, with halogen-free options available. The fuse features an alloy-based element top surface marked with a code for amperage identification and a conformal coating for resistance to cleaning profiles. Its low profile and flat top surface are optimized for pick-and-place operations, making it suitable for automated assembly processes. Common applications include cell phones, DVD players, battery packs, hard disk drives, and digital cameras.
Littelfuse 0466375NRHF Fast-Acting Fuse Specifications:
- Agency Approvals: E10480 (.125A - 5A), 29862 (.125A - 5A)
- Operating Temperature: -55°C to 90°C
- Thermal Shock: Withstands 5 cycles of -55°C to 125°C
- Humidity: MIL-STD-202, Method 103, Condition D
- Vibration: MIL-STD-202, Method 201
- Insulation Resistance: Greater than 10,000 ohms
- Resistance to Soldering Heat: MIL-STD-202, Method 210, Condition D
- Materials Body: Advanced High Temperature Substrate
- Materials Terminations: 100% Tin over Nickel over Copper
- Element Cover Coat: Conformal Coating
- Interrupting Rating: Varies by amperage (see datasheet)
- Nominal Cold Resistance: Varies by amperage (see datasheet)
- Nominal Voltage Rating: Varies by amperage (see datasheet)
- Power Dissipation: Varies by amperage (see datasheet)
- Voltage Drop: Varies by amperage (see datasheet)
