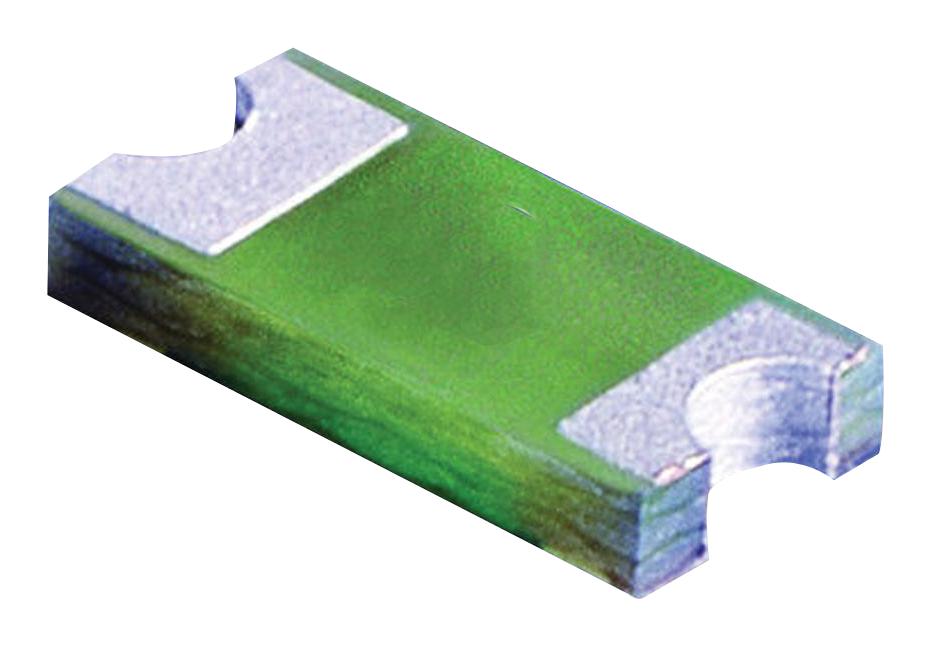

Littelfuse 0466750NRHF Fast-Acting Fuse
The Littelfuse 466 Series 0466.750NRHF is a fast-acting surface mount fuse (SMF) specifically engineered for secondary circuit protection in compact electronic devices. Its 1206 size and thin-film construction make it suitable for space-constrained applications like cell phones, DVD players, and digital cameras. The fuse is 100% lead-free, meeting RoHS requirements, and available with a halogen-free option (identified by the “HF” suffix). It features an alloy-based element for superior inrush withstand characteristics and a flat top surface for easy pick-and-place assembly. The fuse is marked with a code indicating its amperage rating, ensuring easy identification. Its compatibility with lead-free solders and resistance to standard cleaning profiles further enhance its suitability for modern electronics manufacturing.
Littelfuse 0466750NRHF Fast-Acting Fuse Specifications:
- Agency Approvals: E10480 (.125A - 5A), 29862 (.125A - 5A)
- Operating Temperature: -55°C to 90°C
- Thermal Shock: Withstands 5 cycles of –55°C to 125°C
- Humidity: MIL-STD-202, Method 103, Condition D
- Vibration: MIL-STD-202, Method 201
- Insulation Resistance: Greater than 10,000 ohms
- Resistance to Soldering Heat: MIL-STD-202, Method 210, Condition D
- Materials Body: Advanced High Temperature Substrate
- Materials Terminations: 100% Tin over Nickel over Copper
- Element Cover Coat: Conformal Coating
- Interrupting Rating: See Electrical Specifications table
- Nominal Voltage Rating: See Electrical Specifications table
- Resistance: See Electrical Specifications table
- Melting Time: See Electrical Specifications table
- Voltage Drop: See Electrical Specifications table
- Power Dissipation: See Electrical Specifications table
- Typical Opening Time: Measured at 10% of rated current, 25ºC
- I[2] t: Measured at rated voltage
