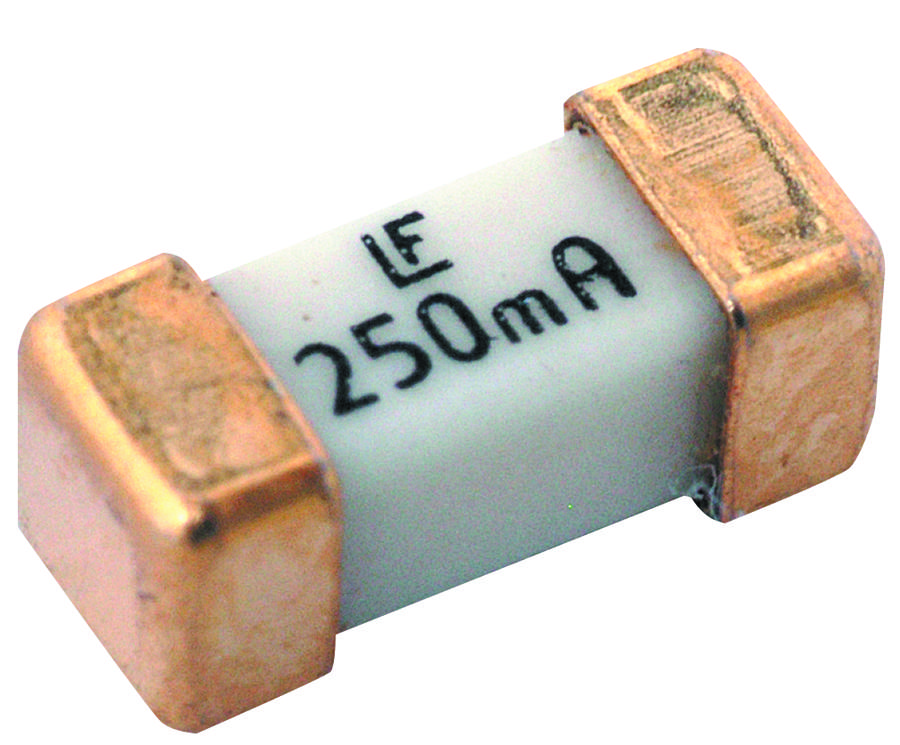

Littelfuse 0451035MRL Surface Mount Fuses
The Surface Mount Fuses are compact, high-reliability fuses designed for quick response to overcurrent conditions, offering ratings from 1A to 8A. They are compliant with RoHS standards and recognized by UL and CSA. These fuses feature ceramic bodies with tin-lead or gold over nickel plated caps, ensuring durability and corrosion resistance. Suitable for surface mounting, they withstand high temperature, vibration, shock, and moisture, making them ideal for electronic protection in industrial applications, with rated interrupting capacities up to 300A at various voltages, ensuring safety and performance.
Littelfuse 0451035MRL Surface Mount Fuses Specifications:
- Body Material: Ceramic
- Terminations: Tin-Lead Alloy or Gold over Nickel Plated Caps
- Cap Materials: Silver Plated Caps (453), Gold over Nickel (451)
- Rated Currents: 1A to 8A
- Voltage Ratings: 125 VAC/VDC, 32 VDC
- Interrupting Ratings: Up to 300A at specified voltages
- Operating Temperature: -55°C to 125°C
- Shock Resistance: 100 G's peak for 6ms
- Vibration Resistance: MIL-STD-202, Method 201
- Moisture Resistance: MIL-STD-202, Method 106
- Soldering Parameters: Wave and reflow solder at 260°C for 10-30 sec
- Packaging: 12mm Tape & Reel, 1,000 or 5,000 pieces per reel
- RoHS Compliant: Yes, add 'L' suffix
Buy the Littelfuse 0451035MRL – Reliable Surface Mount Fuses for Industrial Applications
Purchase Littelfuse surface mount fuses online today to guarantee optimal protection for your electronic systems. Designed with ceramic bodies and robust caps, these fuses offer high interrupting capacities up to 300A and withstand challenging environmental conditions including shock, vibration, and moisture. Their RoHS compliance ensures eco-friendly standards, while precise soldering parameters enable easy installation. Available in various current ratings from 1A to 8A, they are perfect for reliable, safe, and efficient electronic protection in industrial, commercial, and consumer applications. Order now for fast delivery.
Buy Littelfuse 0451035MRL surface mount fuses now and ensure reliable overcurrent protection for your industrial electronic devices.
Frequently Asked Questions
Where can I buy Littelfuse 0451035MRL?
You can click on the BUY or RFQ button to purchase 0451035MRL from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part 0451035MRL?
You can download the 0451035MRL datasheet or visit the Littelfuse website for support.
Who is the manufacturer of 0451035MRL?
Littelfuse
