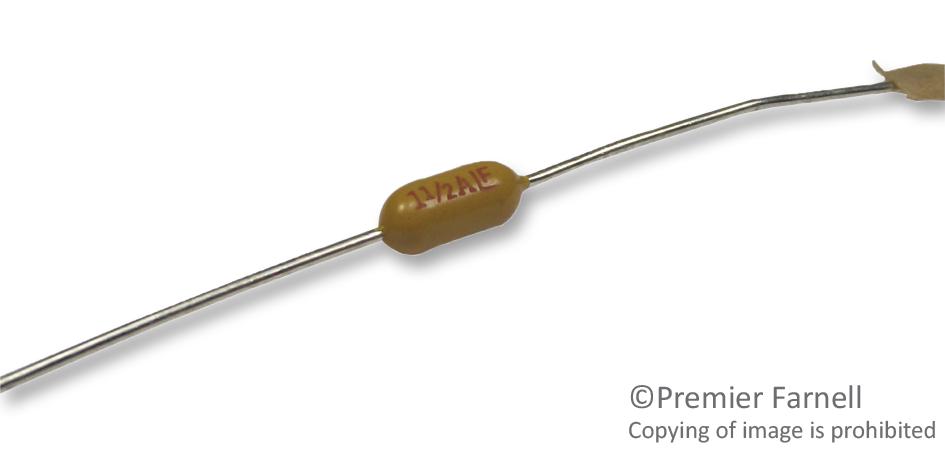

Littelfuse 0473375MAT1L Slo-Blo Fuse
The Littelfuse 0473.375MAT1L PICO II Slo-Blo fuse is designed to provide time-delay performance while maintaining high reliability. This fuse is ideal for applications requiring inrush current protection, such as flat-panel displays, medical equipment, and industrial systems. It features an encapsulated epoxy-coated body, ensuring durability and protection against environmental factors. The fuse is also RoHS compliant, meeting environmental standards. Its wide operating temperature range and various agency approvals make it a versatile choice for diverse electronic applications.
Littelfuse 0473375MAT1L Slo-Blo Fuse Specifications:
- Ampere Range: 0.375A - 7A
- Opening Time (100% Rating): 4 Hours (Min.)
- Opening Time (200% Rating): 1 Sec. (Min.); 60 Sec. (Max.)
- Opening Time (300% Rating): 0.2 Sec. (Min.); 3 Sec. (Max.)
- Opening Time (800% Rating): 0.02 Sec. (Min.); 0.1 Sec. (Max.)
- Operating Temperature: –55ºC to +125ºC
- Lead Pull Force: 7 lbs (Min.)
- Insulation Resistance: 10,000 ohms minimum at 100 volts
- Resistance to Soldering Heat: 20 sec at 260ºC
- Thermal Shock: –65ºC to 125ºC
- Moisture Resistance: 90–98% RH, Heat (65ºC)
- Agency Approvals: E10480, 29862, PSE
- Materials: Solder Coated Copper wire leads
- Solderability: MIL-STD-202, Method 208
- Vibration: MIL-STD-202, Method 204
- Shock: MIL-STD-202, Method 213
- Salt Spray: MIL-STD-202, Method 101
- Dimensions (Length): 62.7 mm (2.468")
- T1 Dimension: 52.4 mm (2.062")
Buy the 0473.375MAT1L LITTELFUSE Slo-Blo Fuse | myMectronic
Purchase the LITTELFUSE 0473.375MAT1L Slo-Blo Fuse securely and reliably online.
Buy Now
