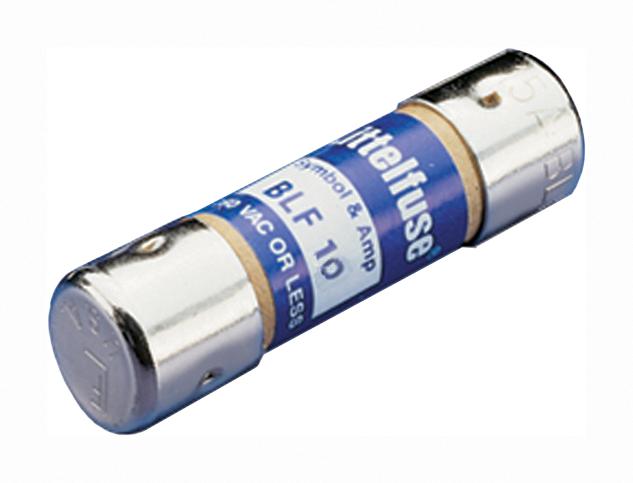

Littelfuse 0BLF010T fuse
The Littelfuse BLF series fast-acting midget fuses are designed for reliable control circuit and instrument protection in dry locations. These 5AG size cartridges offer safe, dependable overcurrent protection suitable for various industrial applications. They feature quick response times, with opening times up to 2 minutes at 200% rated current, and support amperes ranging from 0.5A to 30A. With a high current capacity of 10,000 amperes at rated voltage, they combine safety with cost-effective performance, ensuring protection against short circuits and overloads.
Littelfuse 0BLF010T fuse Specifications:
- Ampere Rating: 0.5A-30A
- Type: Fast-Acting Midget / 5AG Size
- Maximum Current: 10,000 amperes at rated VAC
- Opening Time: 2 minutes at 200% current, until temp stabilizes
- Ambient Temperature Range: 16°F to 248°F
- Dimensions: Length approximately 1.50 inches (38.1 mm), diameter 0.406 inches (10.31 mm)
- Voltage Rating: 250 V
- Agency File Number: LR 29862
- Revised Date: December 9, 2015
- Certifications: UL Listed
Buy the Littelfuse 0BLF010T – Reliable Fast-Acting Fuses for Industrial Applications
Order the Littelfuse 0BLF series fuses online today for dependable and fast-acting protection in industrial control circuits. These 5AG size cartridge fuses are ideal for dry locations, offering quick response times and high current capacity of up to 10,000 amperes. Suitable for a wide voltage range, they protect against overloads and short circuits, ensuring safety and reliability. Easy to install and backed by UL certification, these fuses are a cost-effective solution for electrical protection in various industrial settings. Purchase now for immediate power system safety.
Get Littelfuse 0BLF010T today—built for precision and long-lasting durability in control circuit protection.
