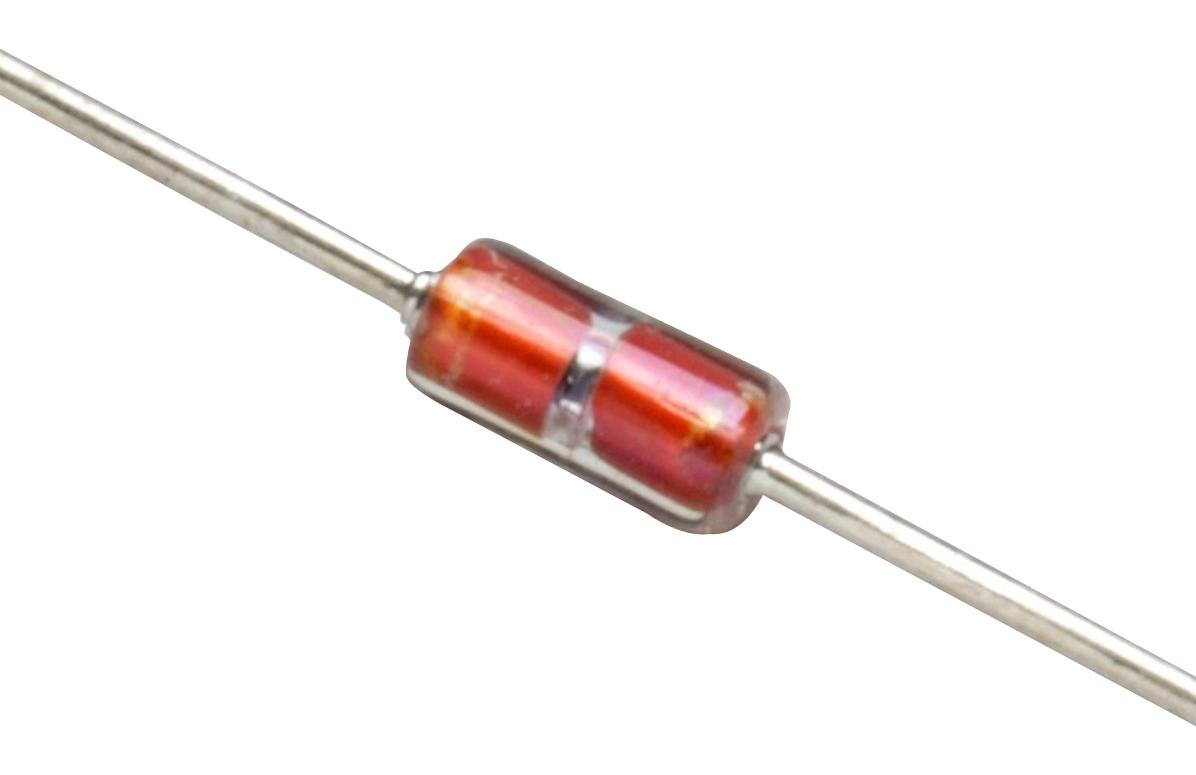

Littelfuse 102PS1G Glass Encapsulated Thermistor
Littelfuse glass encapsulated thermistors are hermetically sealed in a DO-35 package, featuring super stable NTC chips suitable for high-temperature applications up to +300°C. They offer excellent long-term reliability, stability under severe environmental conditions, and are ideal for automatic insertion with uniform dimensions and axial lead configuration. Available with various resistance values and temperature ranges, these thermistors are cost-effective, with options for special lead forms, point matching, and packaging. They are perfect for electronic temperature sensing, circuit protection, and industrial automation.
Littelfuse 102PS1G Glass Encapsulated Thermistor Specifications:
- Resistance range: 501BG1J (-65 to +220°C), 102BG1K (-65 to +220°C), 102PS1G (-55 to +150°C), 162PS1J (55 to +300°C), 182FG1K (55 to +300°C), 202FG1J (55 to +300°C), 252BG1K (2941 -65 to +220°C), 302FG1K (3000 -55 to +300°C), 332FG1K (-65 to +300°C), 502E1G1K (55 to +300°C), 503JG1F (55 to +300°C), 103E1G1F (55 to +250°C), 104JG1K (100000 -55 to +300°C), 220000+ ohms ranges.
- Temperature Range: -65°C to +300°C, depending on model, with some options up to +400°C.
- Resistance Tolerance: +1%, +2%, +5% (available upon request).
- Package: Glass DO-35 hermetic seal, axial lead, 0.020" ±0.002" lead diameter, 1.0" min length, lead wires: 24 AWG tinned copper wire.
- Dimensions: Length at least 1 inch, maximum diameter 0.075" to 0.160" depending on model, with high temperature capability up to +300°C.
- Electrical: Low cost, solderable or weldable lead wires, high voltage insulation, suitable for automated insertion, various resistance and temperature configurations.
Buy the Heaney Series Thermistor: 102PS1G
Order the Heaney Series Glass Encapsulated Thermistor 102PS1G online today to ensure accurate temperature sensing across a wide range from -55°C to +150°C. Featuring hermetic glass sealing, stable NTC chips, and high-temperature capability up to 300°C, these thermistors are ideal for industrial, automotive, and electronic applications. Enjoy fast delivery, competitive pricing, and the convenience of secure online purchasing. Enhance your projects with thermistors designed for durability, precision, and long-term stability. Shop now and benefit from reliable temperature measurement solutions.
Buy Heaney Series Thermistor 102PS1G now and experience unmatched reliability, stability at high temperatures, and excellent long-term performance.
Frequently Asked Questions
Where can I buy Littelfuse 102PS1G?
You can click on the BUY or RFQ button to purchase 102PS1G from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part 102PS1G?
You can download the 102PS1G datasheet or visit the Littelfuse website for support.
Who is the manufacturer of 102PS1G?
Littelfuse
