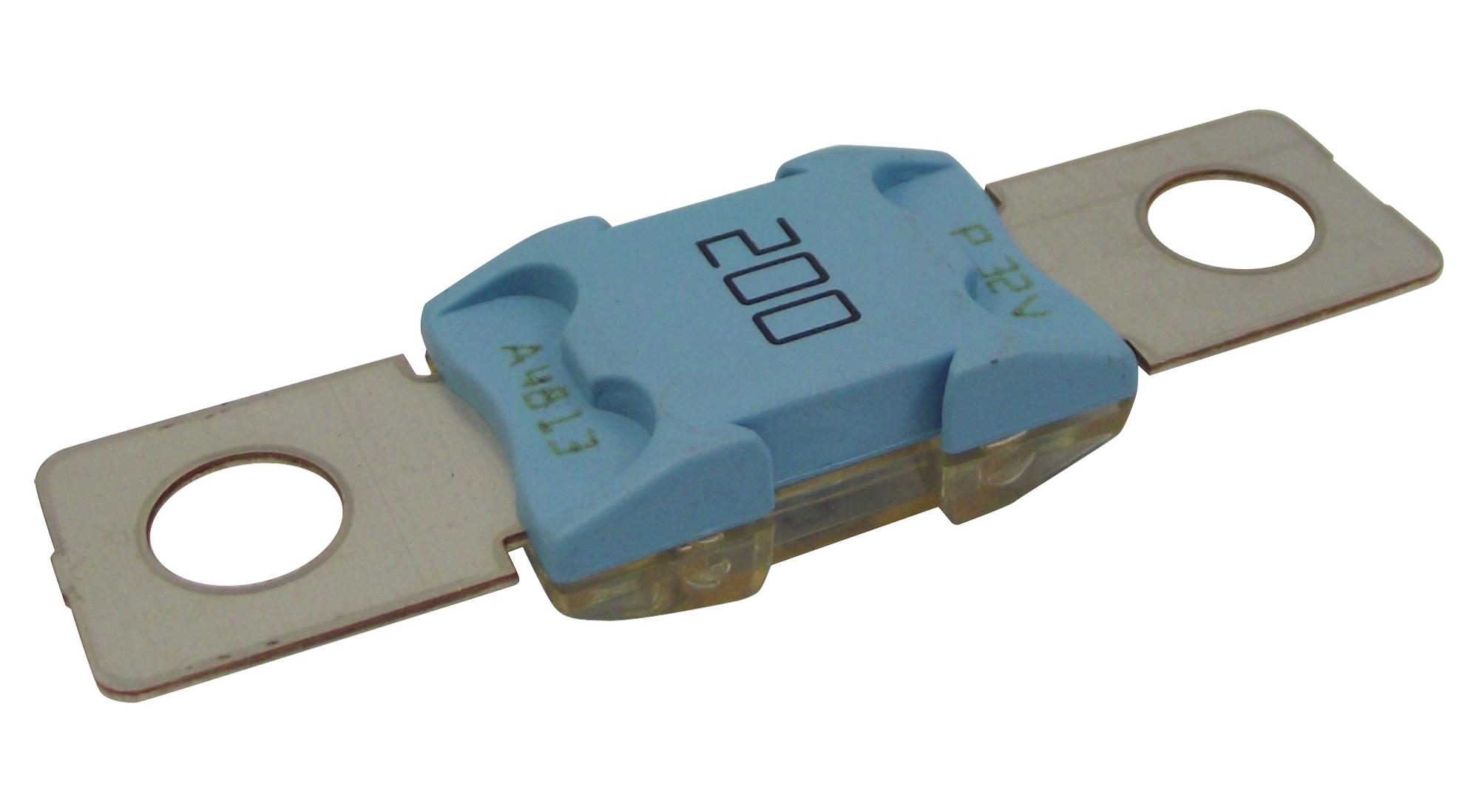

Littelfuse 15353956201 High Current High Power Fuse
This high current fuse from Littelfuse is designed for robust wiring protection in high power electrical systems, rated at 32V with a bolt-on mount. It features a transparent housing made of PET-GF30 for easy visual inspection of blown fuses, and a copper alloy terminal with tin plating for reliable connections. Available in ratings from 100A to 500A, it complies with ISO 8820-5 and UL 248 standards, ensuring safety and durability in demanding applications. Suitable for use in automotive, industrial, and heavy-duty electrical systems requiring high-current protection.
Littelfuse 15353956201 High Current High Power Fuse Specifications:
- Housing Material: PET-GF30
- Terminal Material: Copper alloy, tin-plated
- Housing Color: Transparent
- Voltage Rating: 32V DC
- Current Ratings: 100A to 500A
- Mounting: Bolt-on with 51 mm distance between MB bolts
- Breaking Capacity: 2.000 A at 32V DC for 100A-300A, 1.500 A for 400A-500A
- Compliance: ISO 8820-5, UL 248 Special Purpose Fuses
- Mounting Torque: 12.0 Nm
- Housing: PET-GF30 with transparent cover up to 300A
- Max Operating Current: 0.8% at 23°C for 100-300A, 0.5x for 400-500A
- Part Number: 15353956201
Buy the Buy Littelfuse High Current Fuse Part Number 15353956201 Online
Secure your electrical systems with this high current fuse designed for demanding applications. Rated at 32V and available from 100A to 500A, it features a transparent housing for easy inspection, reliable copper alloy terminals, and robust compliance with industry standards like ISO 8820-5 and UL 248. Its bolt-on mount with 51 mm spacing ensures quick installation. Perfect for automotive, industrial, and heavy-duty electrical protection, this fuse guarantees safety and durability in critical high-current environments. Order online now for fast delivery and reliable performance.
Buy Littelfuse 15353956201 now and experience unmatched reliability and performance for high current wiring protection.
Frequently Asked Questions
Where can I buy Littelfuse 15353956201?
You can click on the BUY or RFQ button to purchase 15353956201 from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part 15353956201?
You can download the 15353956201 datasheet or visit the Littelfuse website for support.
Who is the manufacturer of 15353956201?
Littelfuse
