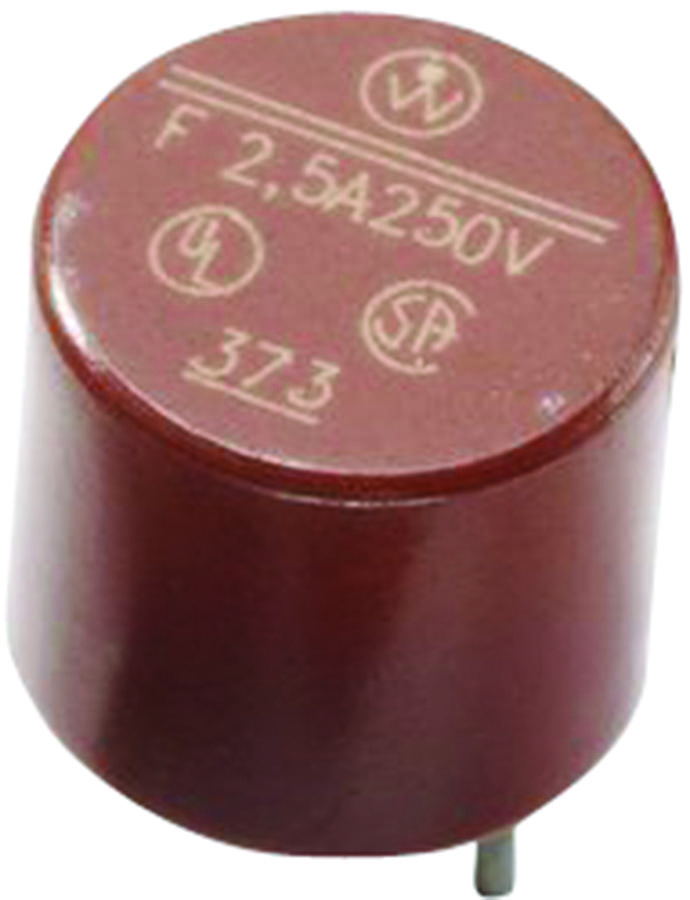

Littelfuse 37011250410 Fast-Acting Fuse
The 370 Series are fast-acting, sub-miniature TR5 fuses rated at 250V, designed to save PCB space, withstand vibration, and meet IEC 60127-3 standards. These lead-free, halogen-free, and RoHS compliant fuses are suitable for power supplies and industrial controllers, featuring low internal resistance and shock-safe casing. Available in various currents from 0.040A to 6.3A, they offer direct solder or plug-in options, ensuring reliability in demanding electronic applications such as consumer electronics and battery chargers.
Littelfuse 37011250410 Fast-Acting Fuse Specifications:
- Rated Voltage: 250V
- Current Range: 0.040A to 6.3A
- Type: Fast-Acting, TR5 Series
- Material: Brown thermoplastic base/cap, copper, tin-plated pins
- Soldering: Wave (260°C, <3s), Hand (350°C, 5s), Resistance (260°C, 10s)
- Operating Temperature: -40°C to +85°C
- Lead Lengths: Short (L=4.3mm), Long (L=8mm)
- Solder Iron Temperature: 350°C +/- 5°C
- Certification: IEC 60127-3, UL Listed
- Packaging: Tape and Ammopack (1,000 pieces), Short Leads (1,000 pieces)
- Reflow Soldering: Not recommended for IR or convection reflow
- Mounting: Direct solder or plug-in
Buy the Littelfuse 37011250410 – Reliable Fast-Acting Fuses for Industrial Applications
Discover the Littelfuse 370 Series fast-acting TR5 fuses, engineered for reliable protection in power supplies and industrial controllers. Compact and vibration resistant, these fuses meet IEC standards, offering a wide current range from 0.040A to 6.3A with lead-free, RoHS compliance. Suitable for PCB mounting via direct soldering or plug-in versions, they ensure safety, durability, and efficient circuit protection. Order online today to secure high-performance fuses designed for demanding electronic and industrial applications.
Buy Littelfuse 37011250410 now and experience unmatched reliability and compact design in industrial power supplies and electronics.
Frequently Asked Questions
Where can I buy Littelfuse 37011250410?
You can click on the BUY or RFQ button to purchase 37011250410 from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part 37011250410?
You can download the 37011250410 datasheet or visit the Littelfuse website for support.
Who is the manufacturer of 37011250410?
Littelfuse
