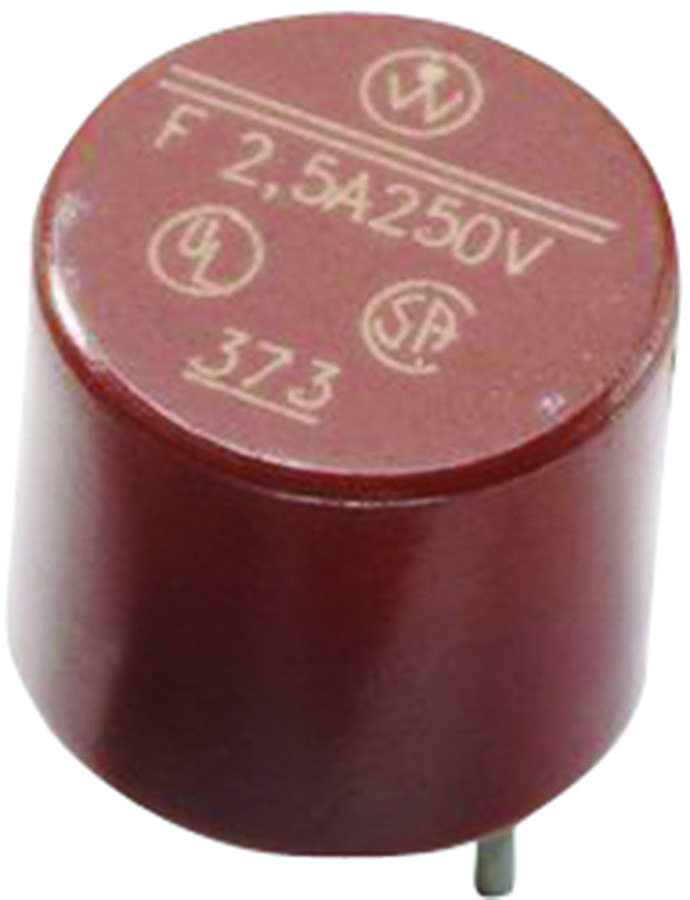

Littelfuse 37011600410 TR5 Fuse
The 370 Series TR5 Fuse is a compact, fast-acting fuse designed for industrial and electronic applications. Rated at 250V, these low-resistance, vibration-resistant fuses feature lead-free, halogen-free, and RoHS compliance. They are ideal for power supplies and industrial controllers, offering direct solder or plug-in options. Certified with a 50A breaking capacity at 250V, these fuses include various current ratings from 0.040A to 6.3A. Their durable casing ensures shock safety and reliable operation in demanding environments, making them suitable for space-constrained PCB designs.
Littelfuse 37011600410 TR5 Fuse Specifications:
- Rated Voltage: 250V
- Breaking Capacity: 50A at 250V according to UL
- Current Range: 0.040A to 6.3A
- Response Time: 10 ms min., 3 sec max.
- Material: Brown thermoplastic base and cap, copper, tin-plated round pins
- Operating Temperature: -40°C to +85°C with derating
- Lead Lengths: Short leads 4.3mm, Long leads up to 8mm
- Soldering Temperature: 350°C for 1-3s with recommended parameters
- Compliance: RoHS, Halogen-Free, Lead-Free
- Dimensions: Compact size suitable for PCB mounting
- Certifications: IEC 60127-3, UL Approved
Buy the Littelfuse Series 370 TR5 Fuse: 37011600410
Enhance your electronic safety and power management with the Littelfuse TR5 Fuse from the 370 Series. This fast-acting, compact fuse rated at 250V is designed for industrial controllers and electronic devices. It features lead-free and halogen-free construction, providing environmentally friendly operation. With various current ratings from 0.040A to 6.3A, it offers reliable performance and vibration resistance. Easy to install via direct solder or plug-in, this UL-approved fuse ensures safety, durability, and space-efficient integration into your power supply or control system.
Get Littelfuse 37011600410 today—built for precision and long-lasting durability in electronic and industrial safety applications.
Frequently Asked Questions
Where can I buy Littelfuse 37011600410?
You can click on the BUY or RFQ button to purchase 37011600410 from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part 37011600410?
You can download the 37011600410 datasheet or visit the Littelfuse website for support.
Who is the manufacturer of 37011600410?
Littelfuse
