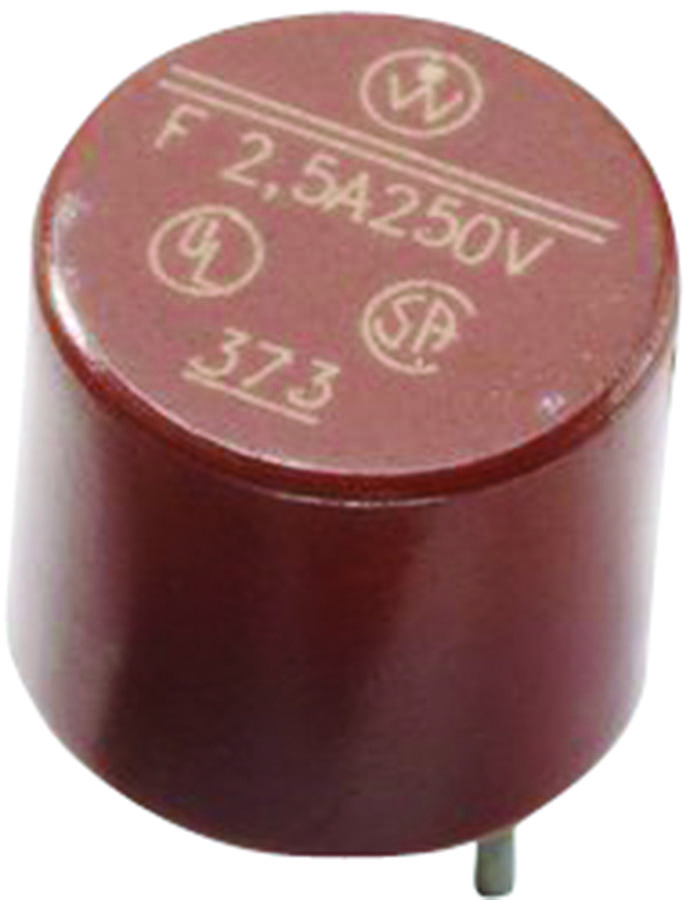

Littelfuse 37416300430 Time-Lag Fuse
The 374 Series Time-Lag Fuse is designed for reliable circuit protection in various electronic applications, including power supplies and consumer electronics. Rated at 250V, these fuses feature low internal resistance, shock-safe casing, and vibration resistance, ensuring durability in challenging environments. They are available in a range from 0.050A to 10A with direct solderable or plug-in options, making them suitable for industrial controllers and battery chargers. Their halogen-free, lead-free construction complies with RoHS standards, promoting safety and environmental sustainability.
Littelfuse 37416300430 Time-Lag Fuse Specifications:
- Rated Voltage: 250V
- Current Range: 0.050A to 10A
- Construction: Halogen free, Lead-free, Shock safe casing
- Resistance: Low internal resistance, measured at 10% of rated current
- Operating Temperature: -40°C to +85°C (de-rating applicable)
- Base/Cap Material: Brown thermoplastic Polyamide PA 6.6, UL 94-0
- Pin Material: Copper, Tin-plated
- Dimensions: Standard sizes vary, with options for short and long leads
- Soldering Temperature: 260°C for 2-5 seconds; recommended iron temperature of 350°C ±5°C
- Climatic Category: -40°C to +85°C, 21 days (IEC 60068-1, -2-1, -2-2, -2-78)
- Lead Pull Strength: 10 N (IEC 60068-2-21)
- Packaging: Tape & Ammopack or Bulk options available
- Certifications: UL Listed, RoHS compliant
Buy the Littelfuse Series TR5 374 Time-Lag Fuse: 37416300430
Secure your electronic and industrial systems with the reliable Littelfuse Time-Lag Fuse from the 374 Series. Designed for dependable circuit protection, it handles currents from 0.050A to 10A at 250V with low resistance and vibration resistance ensuring durability. Its halogen-free, lead-free construction complies with RoHS standards, supporting environmental safety. Easy to install with direct solder or plug-in options, this fuse is perfect for power supplies, consumer electronics, and industrial controllers. Purchase online today for guaranteed quality and state-of-the-art protection.
Buy Littelfuse TR5 37416300430 now and experience unmatched reliability and performance, ideal for circuit protection in industrial and electronic applications.
