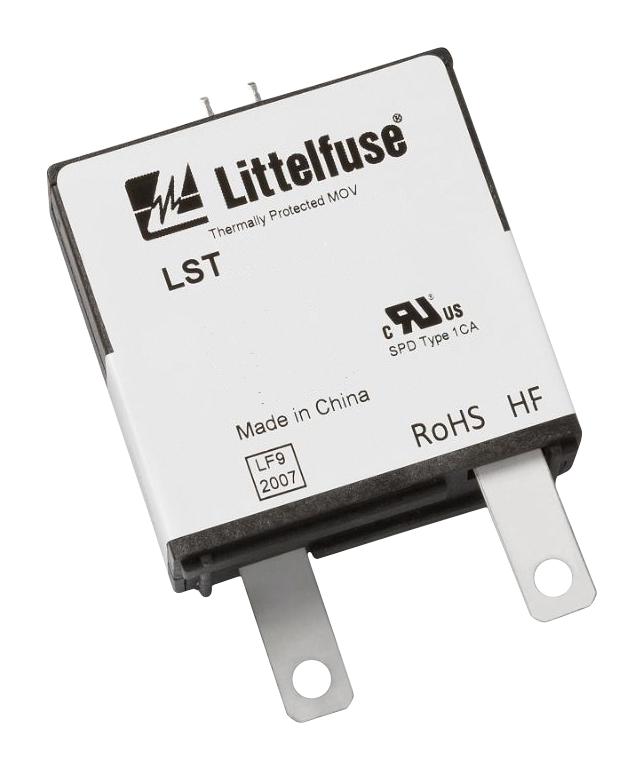

Littelfuse LST1505VL2NT1 Metal Oxide Varistor
The LST series Metal Oxide Varistors are constructed with Littelfuse's thermally protected TMOV technology. They feature built-in thermal disconnection and arc shields, preventing failures and fire hazards under extreme conditions. Equipped with AC/DC-rated micro-switches with Normally Open or Closed options, these MOVs support remote indication and monitoring, making them suitable for Type 1 and Type 2 surge protective devices. They meet UL1449 standards, have the same PCB footprint for 50kA and 75kA ratings, and include a visual status indicator. Environmentally friendly and reliable, these MOVs ensure continuous surge protection and easy maintenance.
Littelfuse LST1505VL2NT1 Metal Oxide Varistor Specifications:
- Type: Type 1 and Type 2 Surge Protective Devices (SPDs)
- Imax Ratings: 50kA and 75kA options for same PCB layout
- Electrical Rating for Switch Pin: 60 Vde/0.2 A, or 250 Vac/0.1 A
- Temperature Range: -40°C to +85°C
- Voltage Proof: 2.5 kVRMS
- Insulation Resistance: > 100 MΩ
- Housing Material: RoHS compliant, lead-free, halogen-free
- Dimensions: Length varies with model, typically around 15.7 mm for Imax 50kA and 12 mm for Imax 75kA
- Protection Features: Built-in thermal disconnector, arc shield, visual status tab
- Standards: UL1449 recognized, IEC 60068-1, IEC 61051-1
Buy the Littelfuse Series LST Metal Oxide Varistor: LST1505VL2NT1
Purchase your Littelfuse Series LST1505VL2NT1 Metal Oxide Varistor online today to enhance your surge protection strategy. Engineered with advanced TMOV technology, it includes thermal disconnection, arc shields, and remote monitoring options to prevent failures and fires during overvoltage events. The compact design supports UL1449 compliance with same PCB footprints for 50kA and 75kA ratings, offering flexibility and easy installation. Environmentally friendly and dependable, this MOV guarantees ongoing surge protection and simplifies maintenance procedures for industrial, commercial, or residential power systems.
Order your Littelfuse Series LST1505VL2NT1 thermally protected MOV today and ensure your surge protection system operates safely and reliably.
Frequently Asked Questions
Where can I buy Littelfuse LST1505VL2NT1?
You can click on the BUY or RFQ button to purchase LST1505VL2NT1 from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part LST1505VL2NT1?
You can download the LST1505VL2NT1 datasheet or visit the Littelfuse website for support.
Who is the manufacturer of LST1505VL2NT1?
Littelfuse
